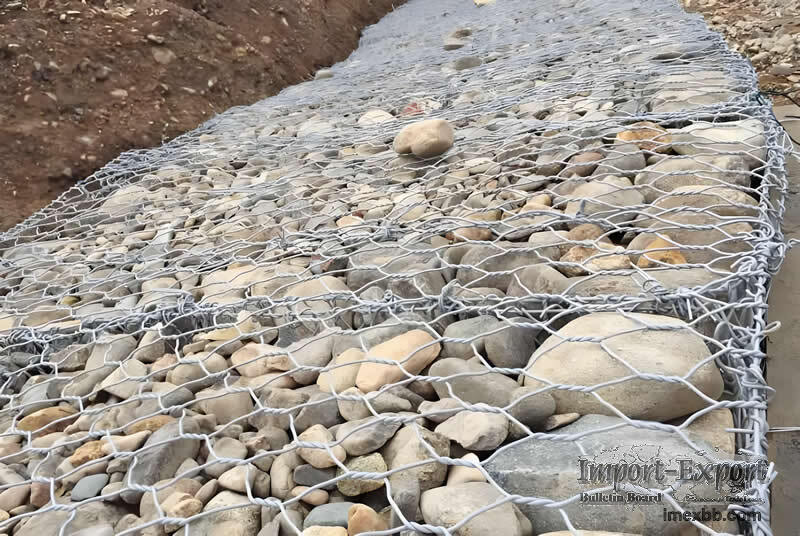

Gabion Nettings Boxes

Gabion boxes offer flexible and durable solutions for various environmental
engineering projects.

Specifications:

Gabion boxes are rectangular, compartmentalized containers constructed from a
triple-twist hexagonal woven mesh.
They are fabricated using galvanized iron (GI) wire to BS1052 standards or PVC-
coated wire that complies with BS1485 and AASHTO-M181 specifications. These
structures offer significant tensile strength, resilience, and are known for
being environmentally friendly and cost-effective.
Common Sizes:

Length: Typically available in lengths ranging from 1 to 4 meters, depending on
the application.
Width: Standard widths range from 0.5 to 1 meter to accommodate different
project requirements.
Height: Heights commonly vary from 0.3 to 1 meter, ensuring flexible
construction options.
Mesh Size: Commonly used mesh sizes include 60 x 80 mm, 80 x 100 mm, and 100 x
120 mm, suitable for different fill materials and project needs.
Wire Diameter: The wire thickness is usually between 2 mm and 4 mm for
galvanized wire, and up to 5 mm for PVC-coated wire, providing varying degrees
of robustness.
Customization Capabilities:

Mesh Size Customization: Mesh sizes can be adjusted based on specific
requirements, with finer mesh preferred for smaller stones and larger mesh for
coarser materials.
Wire Coating: Choose between galvanized iron and PVC coatings based on the
environmental conditions and expected longevity.
Dimensions: Length, width, and height can be tailored to fit the topography and
specific engineering needs.
Diaphragm Placement: Diaphragms are incorporated to subdivide the gabion box,
providing structural integrity and flexibility in stone placement.
