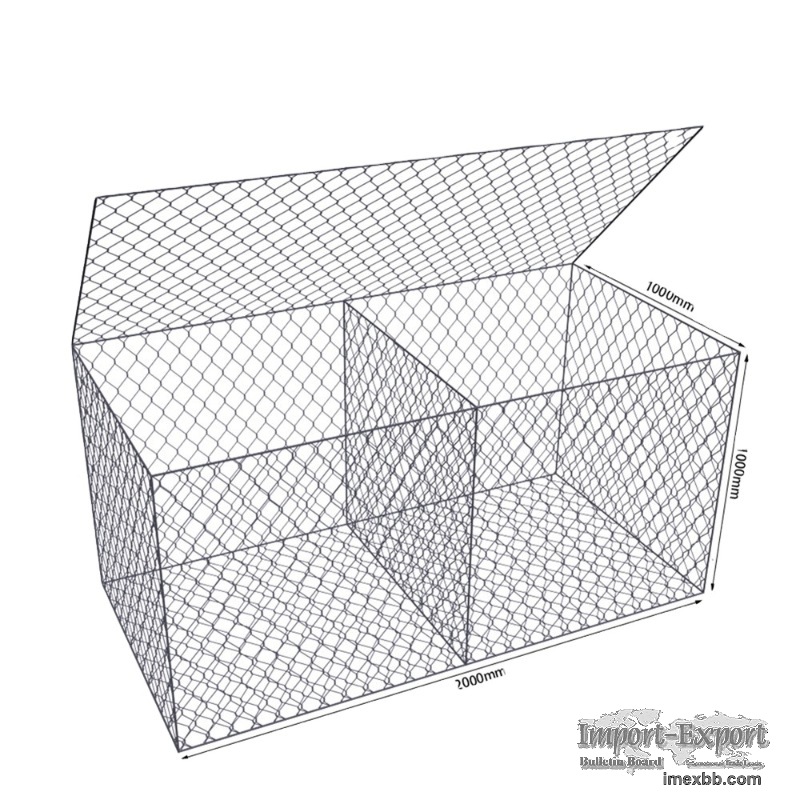

Gabion Basket

Gabion baskets is known as gabion box, gabion basket, gabion wall, gabion
mattresses, etc. It is hexagonal wire netting and can be finished by hot-dipped
galvanized, galvanized aluminum alloy or PVC coated.
It is consist of rectangular units, fabricated from a double-twisted hexagonal
mesh, filled with stones. In order to reinforce the structure, its edges with a
wire having a thicker diameter than the mesh wire. Gabion boxes be divided into
cells by diaphragms at every 1 meters.
The Gabion basket are used widely in slope protection, foundation pit
supporting, mountain rock holding, river and dams scour protection.
Gabion basket
80*100mm
100*120mm Mesh wire diameter 2.7mm zinc coating: 60g, 245g,
≥270g/m2
Edge wire diameter 3.4mm zinc coating: 60g, 245g, ≥270g/m2
Tie wire diameter 2.2mm zinc coating: 60g, ≥220g/m2
Gabion mattress
60*80mm Mesh wire diameter 2.2mm zinc coating: 60g, ≥220g/m2
Edge wire diameter 2.7mm zinc coating: 60g, 245g, ≥270g/m2
Tie wire diameter 2.2mm zinc coating: 60g, ≥220g/m2

Customized sizes Gabion
available Mesh wire diameter 2.0~4.0mm Surface treatment:
Heavy zinc coating
Galfan coating(Zn-5% Al-MM)
