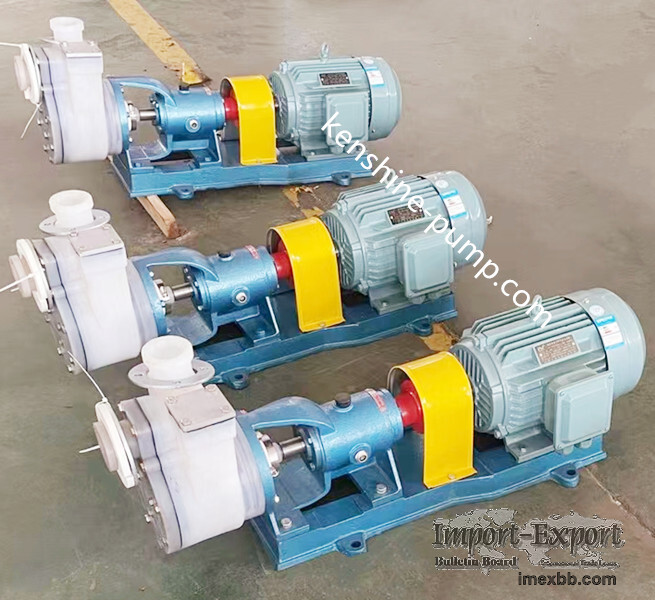

FZB fluoroplastic self-priming pump

Fluoroplastic corrosive resistant self priming pump

Pump body: metal lined with fluoroplastic

Pump cover, impeller, etc., are made of metal inserts coated with fluorinated
plastic sintering and pressing

Shaft seal: External bellows mechanical seal and static ring is made of 99.9%
alumina ceramic (or silicon nitride), and dynamic ring is made of PTFE filling
material, Excellent corrosion resistance, wear resistance and good sealing

The inlet and outlet of the pump are reinforced with cast steel body to enhance
the pressure resistance of the pump

All the flow parts are made of fluorine plastic and are acid & alkali resistant
and corrosion resistant. The self-priming pump has wear- resistance, high
temperature resistance, no aging, high mechanical strength and long life.

The pump has Self-priming function, and it can pump liquid below the installation
position of the pump. Suction height: 2 to 4 meters.

Wide application:

The corrosive liquid in the underground tank is pumped to the target site, the
acid and alkali in the acid and alkali tank without outlet at the bottom is pumped
to the target site, or used for circulation between multiple acid tanks, or used
for acid discharge, etc.

Minimum Order: 1 sets
