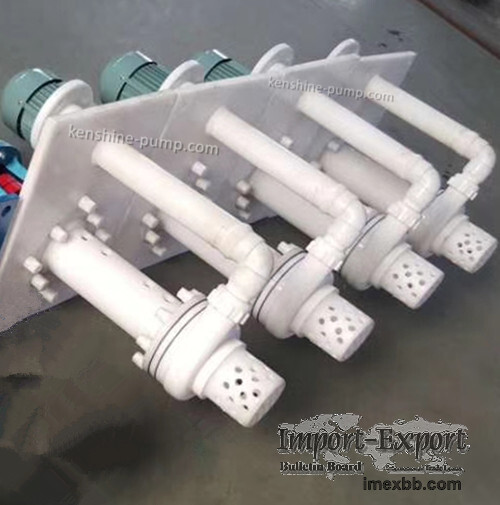

FYS Fluoroplastic alloy submerged chemical pump

FYS Corrosion resistant submerged pump is the developed single stage single
suction long shaft submerged pump with vertical structure. The flow parts for FYS
corrosion resistant submerged pump is made of fluorine plastic alloy and the lower
protection sleeve is made of silicon carbide with high quality.

FYS corrosion resistant submerged pump is suitable to transport corrosive liquids
without solid particles and the temperature of liquids is at 0 to 120 degree
Celsius.

FYS corrosion resistant submersible pump has the good corrosion resistance and
abrasion resistance. The pump body and impeller are partly immersed into the
liquid. So the pump occupies a small area and the shaft seal has no leakage. The
liquid level must be higher than 180mm above the central line of the impeller. The
pump should be started according to the direction indicated and can not be
reversed.

50FYS-25

50 means pump inlet diameter(mm)

FY means corrosion resistance submerged pump

S means the pump material is for fluorine plastic alloy

25 means Head



Performance range:

Flow rate:2 to 460m3/h

Head:3-60m3/h

Pump material: fluorine plastic alloy

Minimum Order: 1 sets
