Fully-automatic Bag in Box Filling Packaging Line

This China-made fully-automatic bag-in-box (bib) filling and packaging line is
especially designed for food packaging and widely used for packaging spring water,
post mix syrup, edible oil and beverage. Certainly it also can be used for
packaging liquid soap, motor oil, diesel exhaust fluid (AdBlue/DEF), engine
coolant.

The bib filling and packaging line includes: Bag-in-Box Filler, Carton Erector,
Bag Inserter, Carton Sealer, Conveyors and other assistant equipment.

The whole line is fully-automatic. Grade 304 stainless steel construction and
grade 316L stainless steel fluid-contact parts. World famous brands of key
components and many are imported. Made in China, but built at high quality level.

Procedures of the whole line:
1) Automatically feed bags.
2) Automatically pull cap, fill, cap and cut bags apart.
3) Automatically erect cartons and seal bottoms with hot melt glue.
4) Automatically insert filled bags in boxes.
5) Automatically seal the box tops with hot melt glue.

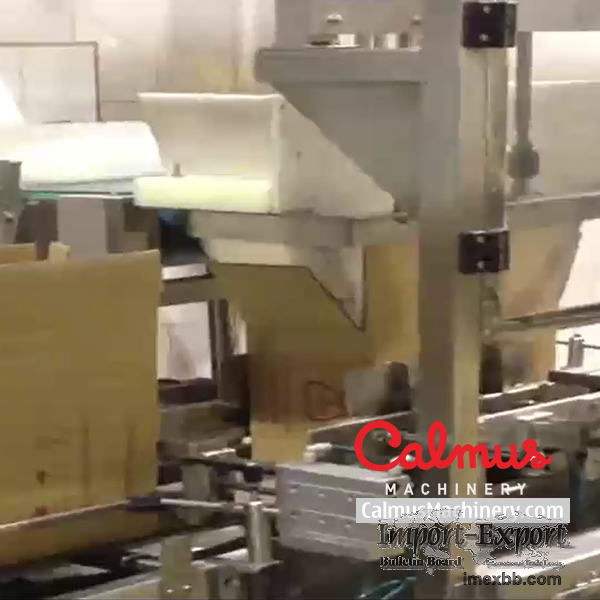

Box Sealing of Bag-in-Box Filling and Packaging Line BIBFPL600

1. Fully-automatic Bag in Box Filling Machine
The Fully-automatic Bag in Box Filling Machine is designed for filling spouted
bags with a wide range of liquids like drinking water, post mix syrup coke, edible
oil and beverage. It features fully-automatic by employing PLC and touch screen
control system. The whole process of continuous bags feed, decapping,
vacuumization (optional), nitrogen injection (optional), filling, capping, cutting
apart from continuous bags and transiting to the conveyor can be completed
automatically, no human operation required.

This filling machine can cap various spigots including Vitop and Scholle's. It is
designed with CIP (Clean in Place) function and pipeline connection. Grade 304
stainless steel body and 316L stainless steel fluid-contact parts.

Features:
1) Fully-automatic, WEB type bags fed.
2) Easy to use. The touch-screen control system makes operation easy.
3) An electromagnetic or turbine flowmeter employed improves filling precision and
truly achieves the quantitative filling.
4) An air filter employed brings clean air to the filling space.
5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6) Filling a different capacity bag acceptable only by changing the setting.
7) Options of vacuumization and nitrogen injection available for specific products
use.

Specifications:
Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 3-25
litres. (Spout is called Gland or Flange too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 1.0 kW
Compressed air: 6-8 bar, 500 NL/min

2. Carton Erector (Erecting carton and sealing bottom)
Erecting capacity: 6-7 cartons/min
Coated carbon steel construction
Hot Melt Glue System: Nordson

3. Bag Inserter (Inserting filled bags in cartons)
Inserting capacity: 15 bags/min
Grade 304 stainless steel body

4. Hot Melt Glue Box Sealer (Closing and sealing top)
Sealing capacity: 10 cartons/min
Coated steel construction
Hot Melt Glue System: Nordson

5. Conveying Systems
Grade 304 stainless steel

Minimum Order: 1 sets

Click to Enlarge
