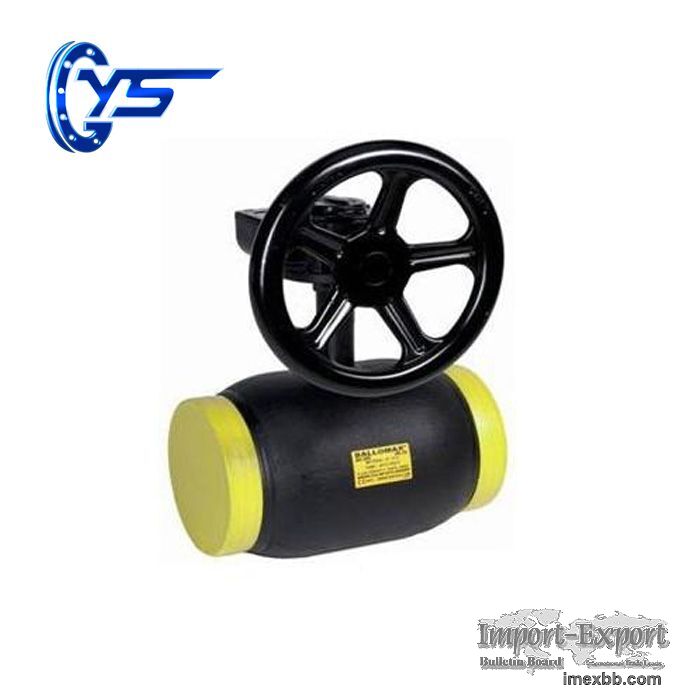

Full Welded Ball Valve industrial ball valve supplier

Full Welded Ball Valve industrial ball valve supplier China Best Ball Valve
Price flanged ball valve manufacturer
Medium temperature: ≤200 ℃
Operation mode: bevel gear / denso
Medium: water, oil, steam
Caliber: DN200-1200
Pressure: 1.6-2.5mpa
Body material: WCB
Connection method: welding
3 way ball valve Details
Full Welded Ball Valve Main parts and materials
Parts name Material
Valve body WCB
Ball stainless steel
Valve stem stainless steel
seal PTFE

Full Welded Ball Valve Function and specification
Type Nominal pressure
（mpa） Testing pressure（mpa） Suitable
temperature Suitable
medium
Strength
(Water) Enclose
(Water)
Q361F-16C 1.6  2.4 1.8 ≤200℃ Water, oil, steam
Q361F-25C 2.5  3.8 2.8 ≤200℃ Water, oil, steam

Full Welded Ball Valve Outline and connecting measurement
PN Nominal
DN(mm） Measurement（mm）
L D D1 D2
b-f H
16
25 200 400 150 219.1 273 315
250 530 200 273 355.6 398
300 635 250 323.9 457 465
350 686 300 377 508 530
400 762 350 426 595 530
450 838 450 480 595 530
500 914 400 530 680 630
600 1067 500 630 810 762
700 1346 59 730 982 830
800 1524 690 830 1130 910
900 1727 790 930 1285 1025
1000 1900 890 1016 1405 1165
1200 2050 1190 1219 1576 1289

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless
steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve,
butterfly valve are all our main product.
Click here to learn more about valves.
https://www.hbysindustry.com/

Minimum Order: 1 pieces
