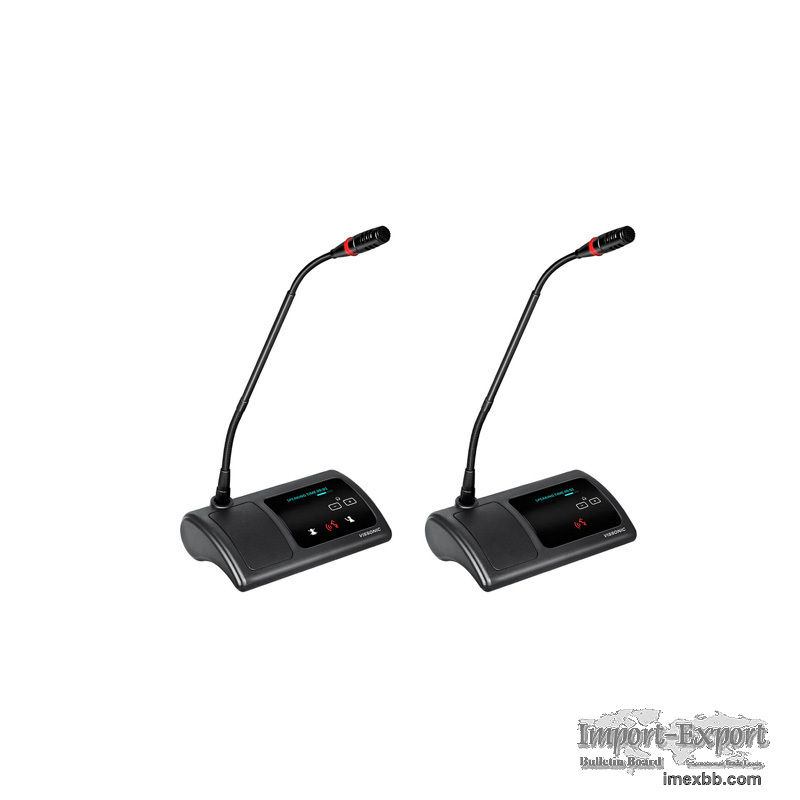

Full Digital Wired Discussion Chairman/Delegate Unit

Full Digital Wired Discussion Chairman/Delegate Unit
VIS-DCC-T/VIS-DCD-T
Tabletop
OLED display
Touchable button
Dual earphones jack
Line-in jack

Technology-Hiding under glass but outstanding
The CLEACON series is the product developed by our R&D people over 10 years
experience in networked digital conference system. Scratch-resistant arc-shaped
back-lit glass control panel is unique in design. CAT5 cable port is popular
for its lots of advantages. Special loop ring connection methods promise the
reliability and robust of our system is not affected by any broken units during
conference.
Small and exquisite but powerful, that’s what we deliver to you

Features

● Stylish, low p , rofile design with touchable interface
● Standard CAT5e and RJ45 connectors are used in CLEACON series to provide
more convenient on project and maintenance.
● The connection cable of units are either hiding underneath or from the rear
of the unit, makes it convenient for different request of installation
● OLED screen, providing excellent brightness, contrast, wide viewing angle
but low power consumption
● Internal high-fidelity loudspeaker
● Head-set interface in both sides with volume adjust
● Line-in interface which allows microphone or other line-in device like cell
phone, laptop to pass audio through to perform teleconference
● The unique AUDIO-LINK digital ring network technology achieve full-digital
signal transmission and processing, completely avoid the RF interference from
cell phone or similar devices.
● "Hand-in-Hand-Loop-Network&q , uot; connection makes the system always working
perfectly and more reliable.
● The unit showing time/date on the screen. Timer on display to set certain
time for each delegate to speak, will remind user or close the MIC
automatically.
● All units can be configured as Chairman or Delegate unit through software
settings based on model VIS-DCC-T.

Functions

● Complian , ce with IEC 60914, GBT 15381-94
● Single CAT5e cable transmits 64 channels of audio and various information.
● High fidelity sound by zero loss audio transmit technology, 48K audio
sampling frequency, 20Hz~20KHz response frequency
● "Hand-in-Hand-Loop-Network& , quot; connection makes the system always working
perfectly no matter changing discussion unit or having any malfunctioned units
● This system assigned to each unit independently ID to avoid duplicate ID
conflict
● AGC (Automatic Gain Control)/AFC (Adaptive Feedback Cancellation)/ANC
(Active Noise Control)/Mix (Auto-Mix) technology
● Build-in functions for intercom
● Hot-swap for any system unit, and the controller has auto-recovery function
● Precise cardioid directional microphone capsule with anti-wind microphone
foam, with two-color LED indicator
● Button for MIC ON/OFF, Priority & Apply Answer button for chairman unit
● Built-in high-fidelity speakers, it automatically mutes to prevent howling
when press MIC ON
● Head-set interface in both sides with volume adjust
● Without using PC software, our conference controller still owns following
settings:
● Limit on the number of speaking persons: By Setting the number of active
units at the same time (Number is 1/2/4/6/ units)
● Discussion modes:
"OPEN" Free for all, limited by the active units setting by controller,
"OVERRIDE" First in First out, "VOICE" Can activate MIC by detecting sound
without press button, "APPLY" To apply then to speak
● Work with VIS-CDC series HD camera and VIS-CATC-A switcher, it can realize
camera auto tracking function

Model for Order

VIS-DCC-T..............Digital Discussion Chairman Unit, microphone and cable
not include
VIS-DCD-T..............Digital Discussion Delegate Unit, microphone and cable
not included
VIS-M330..................330mm Microphone, with anti-wind foam cover
VIS-M410..................410mm Microphone, with anti-wind foam cover
VIS-M485..................485mm Microphone, with anti-wind foam cover
VIS-M600..................600mm Microphone, with anti-wind foam cover
