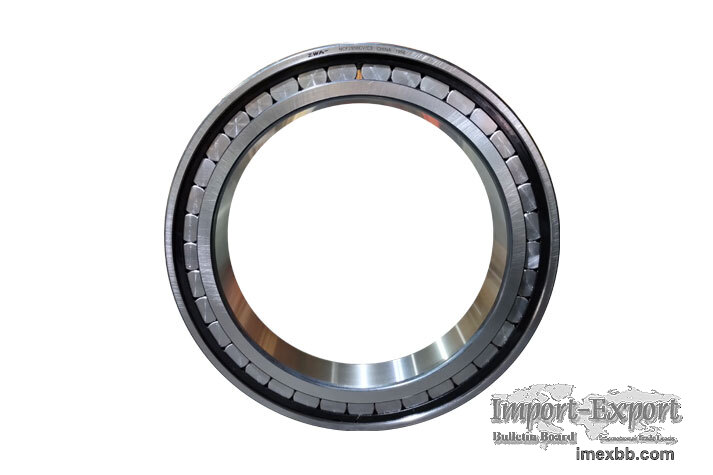

Full Complement Cylindrical Roller Bearings

Full complement cylindrical roller bearing is a kind of cylindrical roller
bearing designed without cages. In this design, the number of rollers are the
biggest in all the bearings types. This kind of bearing is designed to bear
heavy load. In the same width, compared with traditional cylindrical roller
bearings with cages, this bearing is capable of bearing extremely high load
capacity and also save space. But it also have shortcomings like bear
relatively lower rotating speed and higher internal friction. For every kind of
cylindrical roller bearings, there are oil grooves and oil holes on the outer
rings.

Full complement cylindrical roller bearings contain single row and double row.
According to different internal designs, they can also be divided into NNC,
NNCL, and NCF series.

For the NNC series, it is a non-seal bearing. The outer ring is whole-set split
one which is fixed by locking plate. Therefore, the outer ring is not able to
bear axial loads. The outer ring is the same with one rib which acts as axial
locating in two directions. There are three ribs on the inner ring. Three
lubrication grooves and oil holes on lying on the outer ring. Lubrication is
oil in general.

For the NNCL series, it's also non-seal bearing without ribs on the outer ring.
There are three oil grooves and holes on the outer rings, and three ribs on the
inner rings. One fixed ring between two-row rollers on the center of the outer
ring can prevent the rollers from falling out. This type allows a certain axial
replacement between axle and housing. Therefore, they usually act as free-end
bearings.

For the NCF series, it can be one rib or no rib with a locking ring on the
outer ring. The axial clearance “S” guarantees the axial replacement between
axle and housing.

Feature of full complement cylindrical roller bearings

High radial load capacity

High stiffness

Separable and exchangeable

Longer service life

Application fields

Tooling machine, steel and metal process, gearbox, port equipment etc.

As a china bearing supplier, we can offer sorts of related products for sale,
if you have needs, please contact us.
