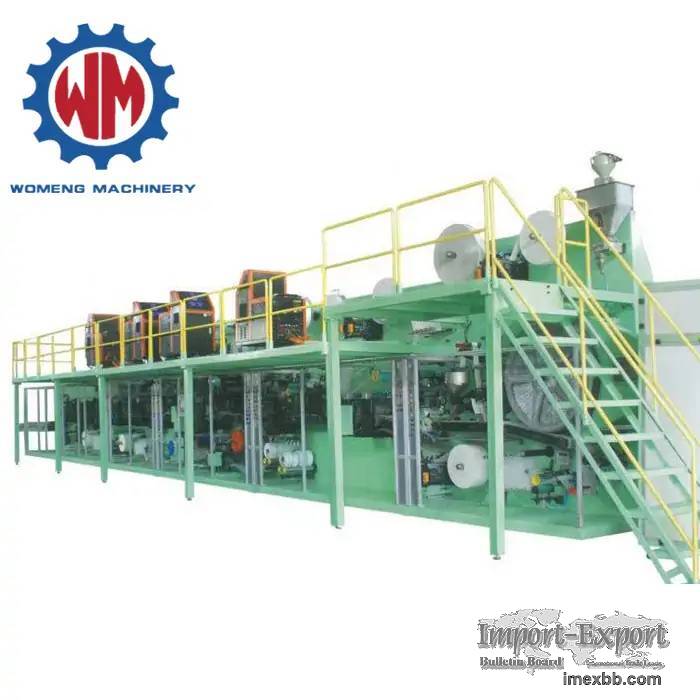

Full Automatic Lady Pants Machine Menstrual Panties Production Line

Short Description:
After-sales Service: 24hours
Warranty: 1year
Product Object: Adult
Designed Speed: ＞400pcs/min
Production Speed: 150-400pcs/min
Computer Control Panel: Computer Control Panel

Product Parameter
Product size M: 680X450 L: 800X650 XL: 950X760(Customixed according to
customer requirement)
Product structure Product structure: upper & lower tissue, cotton core
(mix with SAP), cover sheet hydrophilic non-woven , ADL
(Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back
sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding
sticker.
Control system PLC control system,HMI Operating on the LED touch
screen,Configure HDTV monitor
Drive system Servo Drive(Easy to change size), timing belt and flat belt are
import products, and all the key parts, are import bearings.
Tension system Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg
cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system It has safety device on the operating side, matched with urgent
stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer
machine (double push double exit ) adjustable
Materials corrective system Materials corrective system: Adopt
international famous brand deviation correction system
Power 380V, 50HZ three phase five wire
Machine Capacity 400KW (Excluding glue machine and air compressor)
Bleed pressure 0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 90 Tons approximately
Womeng has professional production adult diaper machine factory, for many
years to maintain a high level of standards, the Full Automatic Lady Pants
Machine Menstrual Panties Production Line has high efficiency, the machine
long-term stable operation! The Full Automatic Lady Pants Machine Menstrual
Panties Production Line has high efficiency, long term stability,
professional sanitary napkin production line, other Adult Diaper machine,Baby
Diaper Production Line,Lady Pants Production Line,Packaging Machine,Pet Diaper
Machine welcome to buy.
