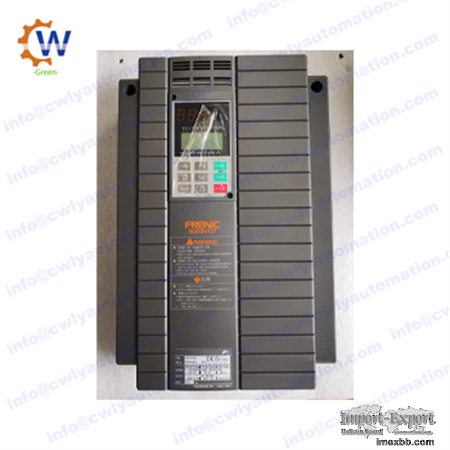

Fuji Electric FRN5.5VG1S-4 powder inverter

Fuji Electric FRN5.5VG1S-4 powder inverter

echnical Specification
Manufacturer: Fuji Electric
Series: FRENIC-VG
Model: FRN5.5VG1S-4E
Application: pumps / fans / lifts / cranes / general purpose
Capacity, kW: 5.5
Current, А: 13.5
Main power supply, V: 380-480 50 Hz/60 Hz
Phase: 3
Output frequency, Hz: 0,1-400
Enclosure: IP20 closed type
Overload capacity, % per 1 min.: 150
Acceleration time, sec: 0,01-3600
Deceleration time, sec: 0,01-3600
EMC filter: optional
Braking unit: +
Analog input: 3
Digital input: 11
Analog output: 3
Digital output: 6
Relay output: 5
RS485 (Modbus RTU): +
Starting torque: 150%
PID: PID - regulation
V/f control mode: +
Vector control with feedback: +
Sensorless vector control: +
Operation temperature, °С: -10.....+50
Storage temperature, °С: -25......+70
Dimensions (W x H x D), mm: 205x300x245
Weight, kg: 6,2
FRENIC-VG versatile series from Fuji Electric has concentrated its technologies to
deliver the best-performing frequency inverter on the market. In addition to its
basic performance, this model features the following great improvements: support
for previously di­fficult applications due to technical and capability limitations,
easier and more user-friendly maintenance, as well as environmental friendliness
and safety. FRENIC-VG versatile series now proudly introduces the inverter as a
unit type as well as a stack type.

Please contact me get more information
Email:Mia@cwlyautomation.com
VK/ , Whatsapp/Telegram:+8613667120925
Website: www.cwlyautomation.com



Powerful: from 0.75 kW to 630 kW in triple rating HD, LD and MD
Strong: even though in hard environment such as sulfurizing gas, salty
environments, dust, humidity, etc.
Flexible: IM (open and closed loop) and PMSM control
Torque accuracy: +/- 3%
Current loop bandwidth: 2000 Hz
Speed control accuracy: +/- 0,005%
Speed loop bandwidth: 600 Hz
Connected to the world: USB on board, typical field buses and Ethernet based field
bus
Mmaking safety easier: STO, SS1, SLS, SBC
All applications solved: Cranes, rubber, paper, winding, test benches, press,
shipboard winch, flying shear, positioning, etc are included
Adaptable and versatile: 5 slots for adjusting to the requirements, real time
built in, FULL PLC on board optional, etc.
