FSB Fluoroplastic alloy chemical industrial pump

Horizontal fluoroplastic acid transfer pump

FSB fluoroplastic centrifugal pump is a centrifugal pump designed by our company
based on the technology of fluoroplastic pump valve. The flow components are all
made of fluoroplastic alloy, and the pump body is all plastic(F46), cantilever
type structure, unable to withstand the gravity of the pipeline. Compared with IHF
series fluoroplastic liner pump, it is light weight and labor-saving for
maintenance. FSB fluorine alloy centrifugal pump adopts outside mounted PTFE
bellows mechanical seal, with multiple protection, prolong the service life of the
machine to seal. For conveying medium with impurity particles, without cooling
water single face hard in hard (to silicon carbide, silicon carbide) mechanical
seal can be adopted, so users need to consider the model selection of the solid
content in the medium.

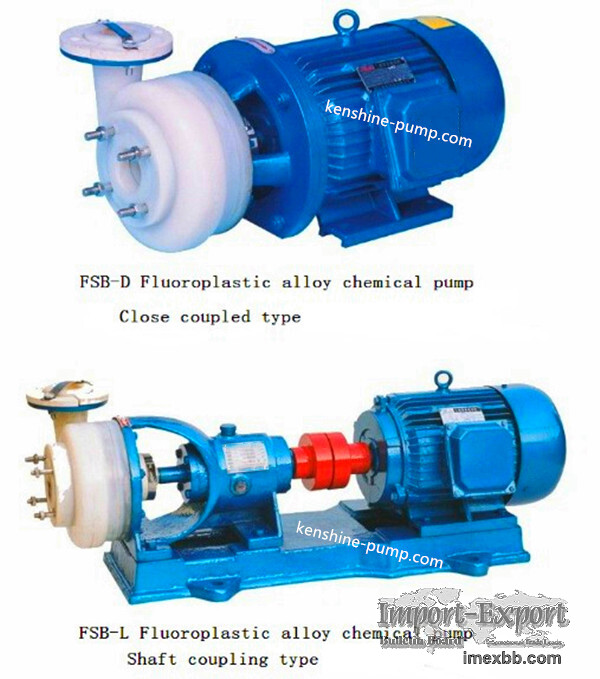

FSB-L and FSB-D type centrifugal pump is with compact structure and Simple to
operate and low cost. FSB-L pump and motor is connected through flexible shaft
coupling. FSB-D pump and motor is close coupling. The pump housing, impeller,
machine seal and so on for the two types can be used interchangeably.

FSB fluoroplastic centrifugal pump is Suitable for transporting liquid in
petroleum, chemical, pharmaceutical, pesticide, pickling, dyestuff, paint,
smelting, papermaking, electroplating, food and other industries. The pump has
strong corrosion resistance, high mechanical strength, no aging, no toxin ,no
decomposition and it can transport any concentration of acid, alkali, oxidant and
other corrosive media.

Minimum Order: 1 sets
