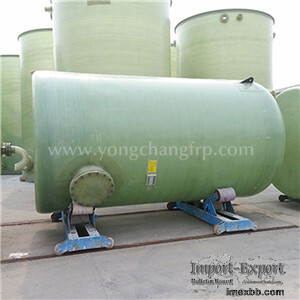

FRP Nitrogen Sealed Water Tank fiberglass water storage tanks

FRP Nitrogen Sealed Water Tank fiberglass water storage tanks fiberglass
tank for sale FRP Storage Tank

Product Description
Specification: DN3500*5250
Medi , um: ultrapure water
FRP nitrogen sealed water tanks are generally used in ultra-pure water systems,
that is, nitrogen is filled on the water surface of the water tank to maintain
a proper positive pressure in the tank and prevent the atmosphere from
contacting the water surface in the tank. Generally used in mixed bed or EDI
electrodeionization equipment after the need to set up a buffer tank, a
nitrogen sealed water tank is used as the buffer tank. The nitrogen sealing
device is composed of two parts: a quick relief valve and a micro-pressure
regulating valve. The quick relief valve consists of a pressure controller and
a single-seat shut-off valve.

The Yongchang-branded glass fiber reinforced plastic (FRP) storage tanks are
well designed and manufactured according to customer demand, with various
shapes, sizes and configurations. We can manufacture storage tanks of any
specification and pressure, which can be made into composite containers such as
PVC/FRP, PP/FRP, PVDF/FRP according to the conditions of use. Our designers can
calculate the hoop stress, axial stress, and bending Poisson’s ratio
coefficient of the product according to your available space, chemical storage
requirements and applicable natural conditions, and then give the detailed
manufacturing process parameters, such as product selection, product thickness,
and layering. All of our designed containers meet industry standards, such as
ASTM D3299 for filament-wound storage tanks and ASTM D4097 for contact molded
storage tanks.

Advantages of FRP storage tank:
(1) Light weight and high strength
The density is between 1.5~2.0, only 1/4~1/5 of carbon steel, but the tensile
strength is close to or even higher than that of carbon steel
2) Good corrosion resistance
3) Good electrical performance
It is an excellent insulating material used to make insulators.

Scope of application
Media that can be stored: inorganic acids, organic acids, bases and hydroxides,
elements, gases, and other inorganic compounds, alcohols, aldehydes, ketones,
ethers, esters, hydrocarbons and petroleum products, halogen-containing organic
compounds and other organic compounds, etc. medium.
