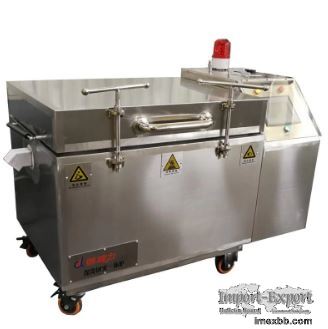

Freezing Cabinet Portable Ultra Low Temperature Chamber Cryogenic Metal

The advantages of DJL liquid nitrogen cryogenic treatment machine for screens
separation:

1,Extremely low temperature, the lowest temperature can reach -196℃, fully
meet the failure temperature of glue properties;

2,Up to 95% separation pass rate, separation efficiency of nearly 1,000 pieces
in an hour, no damage to screen and cable after separation;

3,The intelligent control system can set the required temperature parameters,
cooling speed and heat preservation time according to the process requirements.
It has process records and remote monitoring functions. In the separation
operation, it can effectively ensure the safety of the operator;

4,Advanced liquid nitrogen dispersion technology and unique cold air
circulation system enable the touch screen to cool down quickly and evenly,
achieving the goal of efficient and non-damaging separation.


Specification

Model
Inner cavity dimension
(L*W*H)
External dimension
(L*W*H)
Freezing capacity
L/KG(hour)
SLX-433
400*350*350
1300*800*1050
50L/80KGS
S , LX-544
500*400*400
1410*830*1080
80L/150KGS
, SLX-655
600*500*500
1500*900*1130
150L/300KGS
SLX-755
700*500*500
1600*1030*1140
250L/500KGS
SLX-966
900*500*500
1850*1230*1210
324L/650KGS
SLX-1077
1000*700*700 1950*1280*1290
490L/1000KGS
SLX-1288
1200*800*800
2150*1330*1340
769L/1500KGS ,
SLX-1499
1400*900*900
2350*1580*1470
1000L/2000KG , S

Why take cryogenic treatment of the workpiece?

* To improve the hardness and strength of workpiece
* To improve the abrasion resistance of workpiece
* To improve the impact toughness
* To improve the fatigue strength
* To improve the corrosion resistance of workpiece
* To improve the internal stress distribution of workpiece
* To ensure the dimension accuracy of workpiece
