FR4 Base LED PCB Circuit Board 1oz Copper 3/3MIL Min Line

Product Description


Applications:


Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services,
data networking and IT infrastructure products, wireless infrastructure
products, power amplifiers, splitters and combiners, high power transistors,
etc.

Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer
and office products, banking system etc.

Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld
products, LED, etc.

Automotive
Passenger safety systems, engine control systems, air bags, traction control
products, etc.

High End Computing and Storage
High performance computer and server, mainframe system and storage
equipment, memory, etc.

Industry
Power supply, main control panel, monitor, CCTV products,automotive control
equipment, industry robot, access control products etc

Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency
response defibrillation units, patient monitoring, implantable devices,
robotic surgery systems, biometrics and diagnostic equipment, etc.

Military
Satellite, radar, airplane, control unit, communication equipment .etc.

Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network
tester, gas and oil tester, infrared products, semi-conductor test
equipment, DUT and probe cards, wafer inspection systems, etc.



Capability



　 High precision prototype PCB bulk production
Max Layers 1-28 layers 1-14 layers
MIN Line width(mil) 3mil 4mil
MIN Line space(mil) 3mil 4mil
Min via (mechanical drilling) Board thickness≤1.2mm 0.15mm 0.2mm
Board thickness≤2.5mm 0.2mm 0.3mm
Board thickness＞2.5mm Aspect Ration≤13:1 Aspect Ration≤13:1
Aspect Ration Aspect Ration≤13:1 Aspect Ration≤13:1
Board thickness MAX 8mm 7mm
MIN 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10
layers:0.9mm 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size 610*1200mm 610*1200mm
Max copper thickness 0.5-6oz 0.5-6oz
Immersion Gold/
Gold Plated Thickness Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u” 　
Hole copper thick 25um 1mil 25um 1mil
Tolerance Board thickness Board thickness≤1.0mm:+/-0.1mm
1.0mm2.0mm:+/-8% Board thickness≤1.0mm:+/-0.1mm
1.0mm2.0mm:+/-8%
, Outline Tolerance ≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm ≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm
Impeda , nce ±10% ±10%
MIN Solder mask bridge 　0.08mm 　0.10mm
Plugging Vias capability 　0.25mm--0.60mm 　0.70mm--1.00mm







Advantages


1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection),
QA/QC, flying porbe ,Etesting, etc

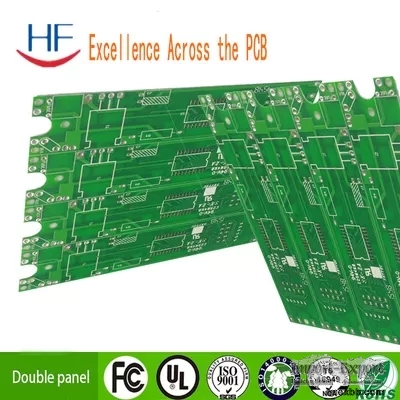

FR4 Base LED PCB Circuit Board 1oz Copper 3/3MIL Min Line 0
