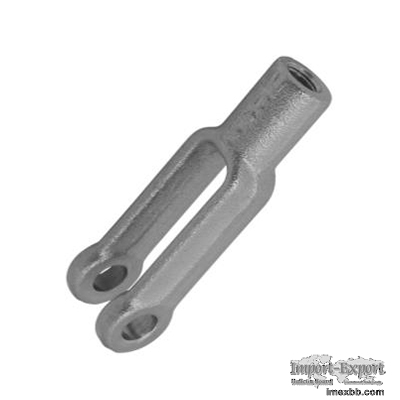

Forged Clevis

Product: Forged clevis

Application: hydraulic cylinder

Place of origin: Hebei, China (Mainland)

Material: C45, 20, ASTM A216 70-36 grade WCB

Process: die mold forged, forging + CNC machining,

Surface treatment: anti-rust oil or painting

Surface roughness: 12.5Ra

Weight: 0.5-50kg

Sample lead-time: 3-8 weeks

Heat treatment: normalizing, quenching, tempering and annealing

Forged steel clevis is a kind of mechanical device designed as a convenient
method of connecting hanger rods to pipe lugs, angles, etc. As a structural
attachment, hydraulic cylinder clevis is most commonly used in conjunction with
Fig. 935 welding lug. Right-Hand Threads (Fig. 38) or Left-Hand Threads (Fig.
38L).

Product Description

Hydraulic Cylinder Clevis Description
Customized drawings are accepted.

Standards: ASTM, AISI, ANSI, AWS, ASME, AB, SAE, API, BS, CAS, JIS and DIN

Packing: seaworthy packing or as per clients' requirements

Competitive Advantages of Hydraulic Cylinder Clevis:
1. Forged in 1000°C , one or two step forging create an accurate profile.

2. CNC machining guarantees the dimensions.

3. Big customer long-term corporation experience

4. Strictly quality control and timely delivery guaranteed

5. Trial or small orders are accepted.

The hydraulic cylinder clevis used on different type of cylinders, strong and
durable.

The precision forging process of hydraulic cylinder clevis can guarantee the
material without defect inside the parts.

We can provide machined hydraulic cylinder clevis according to customer’s
drawings.

Forging is a process method that uses forging machinery to exert pressure on
metal blanks, causing them to create plastic deformation to obtain forgings
with certain mechanical properties, certain shapes and sizes. By forging can
eliminate the metal in the smelting process of the casting state loose and
other defects, optimize the microstructure, and because of the preservation of
complete metal streamlined, forging mechanical properties are generally better
than the same material castings

JC forging is a professional manufacturer of precision forging parts. We
provide disc valve hydraulic motor, hydraulic motor spool valve, custom forged
parts and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
