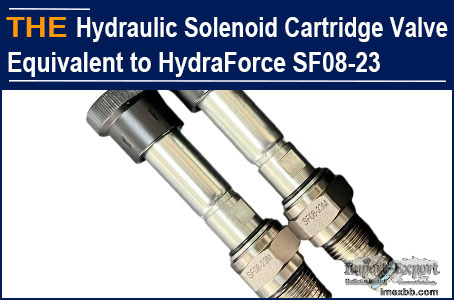

For Solenoid Cartridge Valve equivalent to HydraForce SF08-23, a few custom

Two weeks ago, a new Italian customer placed the test order for a hydraulic
solenoid cartridge valve equivalent to HydraForce SF08-23 with AAK.

Last week, another new customer from Peru placed the test order with us, too.

This is a solenoid-operated, 2-way, piloted, poppet-type, normally open, screw-
in, hydraulic cartridge valve designed for low leakage in load-holding
applications. Compared to other similar solenoid cartridge valves, this valve
has a higher operating pressure at 350 bar (5000 psi). It is also an
alternative valve for Winner EP-08W-06.

When de-energized, the SF08-23 poppet lifts to open flow from 2 to 1; Flow is
also open from 1 to 2. When energized, the cartridge acts as a check valve,
allowing flow from 1 to 2, while blocking flow from 2 to 1, after overcoming
the solenoid force. It has the manual override option. To override, push button
in to activate. To return to normal valve function, release button.

AAK hydraulic solenoid cartridge valve 2 advantages:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-SF08-23 Hydraulic Solenoid Cartridge Valve:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 40 lpm (10 gpm)
Internal Leakage: 3 drops/min max. at 350 bar (5000 psi)
Operating Fluid Temperature: - 40°C ~ 120°C (with Standard Buna N seals)
Cavity: VC08-2

AAK E-SF08-23 Hydraulic solenoid cartridge valve, benchmarking HydraForce SF08-
23, its service life is 2 times that of its domestic peers. You are welcome to
give it a try.

AAK HYDRAULIC VALVES (823) 2024-11-18

Minimum Order: 1 sets

Click to Enlarge
