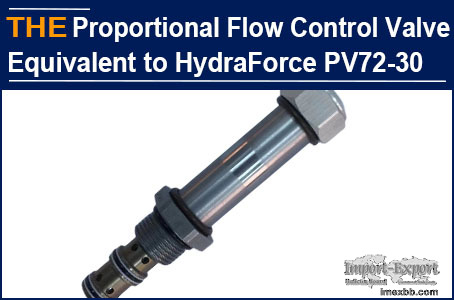

For Proportional Priority Flow Control Valve Cartridge equivalent to HydraF

In June of 2022, a Brazilian customer placed the test order from AAK for an
Electro-Proportional Priority Flow Regulator Valve Cartridge equivalent to
HydraForce standard part PV72-30.

It is a solenoid operated, pressure compensated, spool type, normally closed,
proportional priority flow control valve.

After 1 year of testing, the customer placed the bulk order for 1,000 pcs in
July of 2023. Last week, we received their bulk order again for 1,000 pcs. Per
customer, this valve has a very stable performance and received positive
feedback from market.

AAK hydraulic solenoid operated proportional priority flow control valve 2
advantages:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-PV72-30 hydraulic solenoid operated proportional
priority flow control valve:
Operating Pressure: Port 1: 240 bar (3500 psi); Port 2 and 3: 207 bar (3000
psi)
3 Ported Flow: 0 to 57 lpm (0 to 15.0 gpm) Note: For "A" flow range
0 to 38 lpm (0 to 10.0 gpm) Note: For "B" flow range
3 Ported Max. Input Flow: 114 lpm (30 gpm) Note: For flow range "A" and "B".
2 Ported Max. Input Flow: 53 lpm (14 gpm) Note: For flow range "A"
31 lpm (8 gpm) Note: For flow range "B"
Note: For increased flow capacity in a 2-port flow control
Internal Leakage: 0.38 lpm (0.1 gpm) Note: Max. at 207 bar (3000 psi), 0
current
Fluids: Mineral-based or synthetics with lubricating properties at viscosities
of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC12-3

AAK E-PV72-30 hydraulic solenoid operated proportional priority flow control
valve, benchmarking HydraForce PV72-30, our Brazilian customer has been
purchasing it since 2022. You are welcome to try it out.

AAK HYDRAULIC VALVES (825) 2024-12-02

Minimum Order: 1 sets
