For Hydraulic Pressure Reducing/Relieving Proportional Valve equivalent to

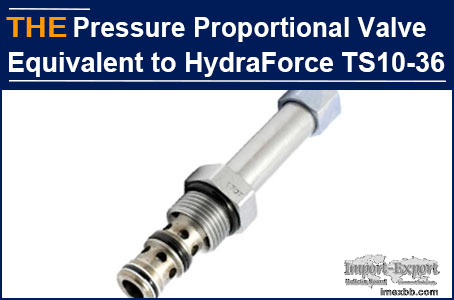

Last June, one of our old customers in USA placed a test order for a hydraulic
Pressure Reducing/Relieving Proportional Valve equivalent to HydraForce TS10-
36.

It is a screw-in, cartridge style, pilot-operated, spool-type, proportional
pressure reducing/relieving valve which can be infinitely adjusted across a
prescribed range using a variable electric input. The regulated pressure is
proportional to the input electrical current.

In Ningbo China, there are other hydraulic cartridge valve manufacturers who
have this model, and AAK price is not the most competitive one, but because the
valves that they purchased from AAK in the past have very stable quality, they
do not want to take risk to try other hydraulic cartridge valve manufacturers,
especially this is a proportional valve, which is not easy, so they still
placed the trial order with AAK.

Till now, it has been 1 year since the trial order was shipped. Last week, AAK
received the official order of 200 pcs qty from the customer.

The advantages of AAK Hydraulic Pressure Reducing/Relieving Proportional Valve
E-TS10-36 are:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-TS10-36 Hydraulic Pressure Reducing/Relieving
Proportional Valve:
Max. Operating Pressure: 240 bar (3500 psi)
Capacity: 56.8 lpm (15 gpm)
Max.Control Current: 12 VDC coil - 1.10 A; 24 VDC coil - 0.55 A
Relief Pressure Range (from zero to maximum control current):
A: 6.9 - 207 bar (100 - 3000 psi)
B: 6.9 - 159 bar (100 - 2300 psi)
C: 6.9 - 117 bar (100 - 1700 psi)
Cavity: VC10-3

AAK E-TS10-36 Hydraulic Pressure Reducing/Relieving Proportional Valve,
benchmarking HydraForce TS10-36, its service life is 2 times that of its
domestic peers. You are welcome to give it a try.
