For Hydraulic Pressure Compensated Flow Regulator Valve equivalent to Hydra

Last May, one of our old customers in USA placed an order for a hydraulic
Pressure Compensated Flow Regulator Valve equivalent to HydraForce FR10-30F.

The FR10-30F is a screw-in, cartridge style, pressure compensated, non-
adjustable hydraulic flow regulator valve. It CAN be used as a priority type
flow regulator, delivering the pump flow to priority port 3 first, then
bypassing excess to port 2; or a restrictive type, 2-way flow regulator when
the bypass port 2 is blocked.

In Ningbo China, there are several hydraulic cartridge valve manufacturers who
have this model. After testing the samples from manufacturers in Ningbo, the
customer placed their order with AAK due to AAK’s stable quality.

Till now, it has been over 1 year since we shipped the first order. We are very
happy to hear that customer will place their re-peat order for 500 pcs this
week.

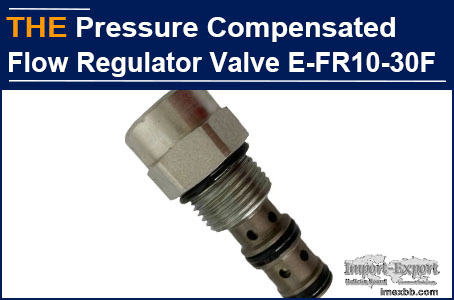

The advantages of AAK Hydraulic Pressure Compensated Flow Regulator Valve E-
FR10-30F are:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-FR10-30F Hydraulic Pressure Compensated Flow
Regulator Valve:
Max. Operating Pressure: 240 bar (3500 psi)
Flow Ratings:
Priority Flow Rating: 0.4 to 22.7 lpm (0.1 to 6.0 gpm)
Inlet Flow Rating: 37.8 lpm (10.0 gpm) Maximum
Cavity: VC10-3

AAK E-FR10-30F Hydraulic Pressure Compensated Flow Regulator Valve,
benchmarking HydraForce FR10-30F, its service life is 2 times that of its
domestic peers. You are welcome to give it a try.
