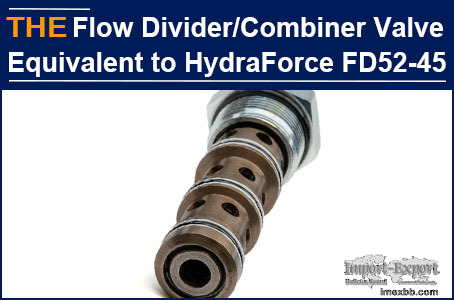

For Hydraulic Flow Divider/Combiner Valve equivalent to HydraForce FD52-45,

Last October, we received an inquiry from a new customer in the United States
for a hydraulic flow divider/combiner valve equivalent to HydraForce FD52-45.

It is a screw-in cartridge, spool type flow divider/combiner valve. The
cartridge valve pressure compensated proportional division of inlet flow or
combining of two return flows regardless of system operating pressure
conditions. The valve provides synchronizing flow in dividing and combining
modes.

In Ningbo China, there are many hydraulic cartridge valve manufacturers who
have this model. Per customer, AAK is not the most competitive one, but they’d
like to try a test order because one of their partners mentioned AAK to them.

AAK nearly do not attend any exhibitions. We focus on quality control and
customized projects. The majority of our new customers are introduced by old
customers.

The advantages of AAK Hydraulic Flow Divider/Combiner Valve E-FD52-45 are:
1. The quality of this valve is benchmarking HydraForce, but price is much
cheaper.
2. The service life is 2 times that of domestic hydraulic cartridge valve
manufacturers in China

Technical parameters of AAK E-FD52-45 Hydraulic Flow Divider/Combiner Valve:
Max. Operating Pressure: 345 bar (5000 psi)
Capacity: 90 lpm (24 gpm)
Inlet flow rating: 15 to 60 lpm (4.0 to 16.0 gpm) Model code 44
23 to 90 lpm (6.0 to 24.0 gpm) Model code 66
Flow Accuracy: 10% (25 ~ 100% of Max.inlet flow)
Cavity: VC12-4

AAK E-FD52-45 Hydraulic Flow Divider/Combiner Valve, benchmarking HydraForce
FD52-45, its service life is 2 times that of its domestic peers. You are
welcome to give it a try.

AAK HYDRAULIC CARTRIDGE VALVES (798) 2024-05-27

Minimum Order: 1 sets
