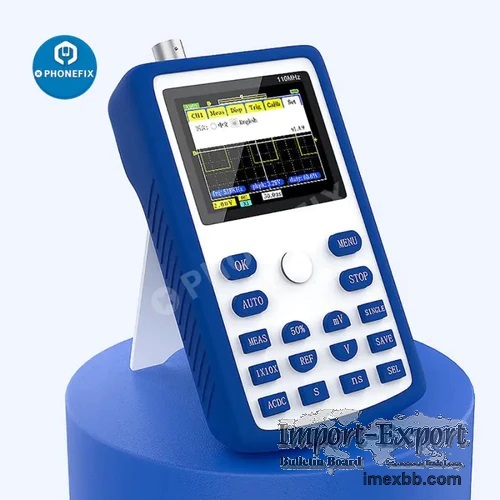

FNIRSI-1C15 Professional Digital Handheld Oscilloscope

FNIRSI-1C15 Professional Digital Oscilloscope 500MS/s Sampling Rate 110MHz
Analog Bandwidth Support Waveform Storage

FNIRSI-1C15 is a fully functional, practical and cost-effective handheld
oscilloscope newly launched by FNIRSI. The real-time sampling rate is 500M,
and the analog bandwidth is 110MHz. In addition to all the functions of a
conventional handheld oscilloscope, we also added a one-key quick auto
function on this basis, so you can easily grasp the waveform like a desktop
computer.

We have added 1k Hz self-test square wave for FNIRSI-1C15, and the storage
depth has been upgraded to 12kpts. With reference to the waveform, you can
pause at any time to save the previous frame waveform to the screen, and
you can compare it with the currently refreshed waveform. Afterglow and
scroll modes make it easier to detect and record waveforms.

Built-in 3000mAH rechargeable battery, it can work continuously for more
than 10 hours after fully charged. The body is equipped with a high-quality
silicone sleeve, which is non-slip and anti-drop. The joystick replaces the
original arrow keys, making the operation simpler and more effective.


Package:

1 * FNIRSI 1C15 oscilloscope

1 * P6100 High Voltage Probe

1 * Allgator Clip Probe

1 * Micro USB charging cable

1 * English User Manual

1 * Cloth bag

Minimum Order: 1 pieces
