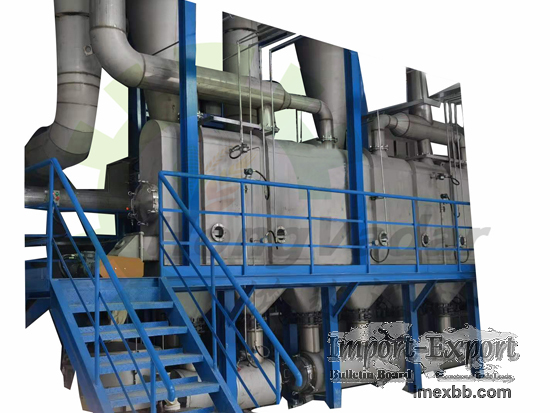

Fluid Bed Dryer System

HongVadar company provides you the Lysine, Tryptophan, Threonine, Valine,
Leucine, etc. fermentation products project. HongVader as agricultural
processing plants play the roles of corn, sweet corn processing plant, starch
production plant, starch of corn and wheat processing plant, taking wheat,
rice, cassava processing, msg project, and production lines of ethanol glucose,
DMH, fructose, sorbitol.

HVD-FBD-P series boiling fluidized bed dryer takes air heated by the heat
exchanger to form hot air which is distributed into the main engine through
valve plate, and the loose wet material is transferred into the fbd dryer from
the feeder. Due to the effect of wind pressure, the material forms a boiling
state in the dryer and has extensive contact with hot air, thus drying the
material in a relatively short time. Fluid dryer bed is suitable for drying
bulk materials and crystal materials; After drying, the product has the
characteristics of uniform moisture, good fluidity, and not easy to
agglomerate, which is widely used in amino acid, food industry, and other
materials drying. As the fluid bed dryer suppliers, HongVadar provides high
quality fluid bed dryer for sale. Compared with other manufacturers, we can
offer a reasonable fluidized bed dryer price.

System Optimization and Energy Saving Scheme
Our industrial fluid bed dryer manufacturer takes the patent technology to
improve the structure of the air distribution system of the fluidized bed
dryer, and improves the traditional vibrating fluidized bed into a fixed
fluidized bed, which improves the temperature difference between hot air and
the utilization ratio of hot air, and effectively reduces the energy
consumption level of the system.
HongVadar industrial fluid bed dryer manufacturer adopts the fixed fluidized
bed dryer effectively reduces the dust leakage in the soft connection part,
improves the production environment, reduces the fluid bed drying equipment
failure rate, and reduces the civil construction investment.
Fluid bed dryer manufacturer optimizes the design of all the fluid bed drying
equipments and pipes of the ventilation system to reduce the resistance of each
equipment and pipe to the wind, reduce the installed power of blower and
induced draft fan, and save the electricity consumption.
According to the gravity principle and trapezoidal distribution, make full
use of high and low gravity difference, reduce the power transmission
equipment, reduce installed power, and save electricity consumption.
The finned heat exchanger of fluid bed drying equipment is a self-designed
and developed high-efficiency energy-saving heat exchanger, which can make
maximum use of fluidized bed dryer and flash steam generated.
Industrial fluid bed dryer manufacturer utilizes the proprietary technology
to realize the average distribution of materials as soon as possible, fully mix
with the materials in the dryer, and adopt the patented technology of
directional side blowing air plate to realize the first-in-first-out of
materials; Effective prevention and control of product color difference.
For the phenomenon that the product is easy to absorb moisture and
agglomerate after packaging due to high air humidity, add a cooling and
dehydrating device like fluid bed drying equipment cooler in the cold air
conveying pipe to dehumidify the air and cool the product with the drying cold
air.

The directional side blowing air plate and no dead angle treatment of the
internal components, can clean all the materials in the fluid bed drying
equipment when the machine is shut down, reduce the manual cleaning process,
and prevent the risk of bacterial contamination and mildew of the remaining
materials.

Fluid Bed Dryer System Feature
Energy-saving and low consumption. High efficiency.
Fixed fluidized bed dryer effectively reduces the dust leakage in the soft
connection part, improves the production environment, reduces the equipment
failure rate, and reduces the civil construction investment.
First-in-first-out, fluid bed drying equipment has effective prevention and
control of product color difference.
Our fluid dryer bed has many features, for example, the continuous or batch
fluid (fluidized) bed dryer,vibrating fluid (fluidized) bed dryer, horizontal
fluidized bed dryer, aeromatic fluid bed dryer and carrier fluid bed dryer
pdf.

HongVadar is a advanced industrial fluid bed dryer manufacturer relies on
professional design, strict production management, the fine processing
procedure to provide high efficiency and energy saving fluid bed drying
equipment system for the customer. The industrial fluid bed dryer manufacturer
has passed the international ISO9001 quality system certification, and with the
design and manufacturing capacity of pressure vessels. Customers can choose
Chinese GB, International ISO, American standard AWS, EU EN, and other
standards for equipment design and production according to their needs.
Compared with other fluid bed dryer suppliers, Hongvadar fluid bed dryer china
has fluid (fluidized) bed dryer of affordable price for sale.

Fluid Bed Dryer System Technical Parameter


Fluid Bed Dryer Working Principle
If gas passes through a particle bed, the bed will take on a different state
depending on the flow velocity. When the flow velocity is lower, the flow only
passes through the gaps between the stationary particles, which is called a
fixed bed. When the flow velocity increases to a certain value, all particles
are suspended by the rising airflow. At this moment, the force of gas on
particles is balanced with the gravity of particles, and the bed reaches the
initial fluidization. At this time, the airflow velocity is called the minimum
fluidization velocity. When the airflow velocity exceeds this value and exceeds
the terminal velocity of particles (maximum flow velocity), the upper interface
of the bed disappears and has entrainment phenomenon. Solid particles are
brought out from the bed with the fluid. Such situation is the phenomenon of
airslide transmission to the solid particles, or called dispersed phase
fluidized bed.

Fluid Bed Dryer Definition
Fluidized bed drying technology is a new drying technology developed in recent
years. The process is that the bulk material is placed on the orifice plate,
and the gas is transported from the bottom of the orifice plate, causing the
material particles to move on the gas distribution plate, which is suspended in
the air flow and produces the mixed bottom layer of material particles and gas,
just like liquid boiling. In the fluidized bed dryer, the material particles
are in full contact with the gas in the mixing bottom layer for heat transfer
and moisture transfer between the material and the gas. It is widely used in
chemical, food, ceramics, medicine, polymer and other industries.

Application of Fluidized Bed Dryer
It is suitable for drying bulk granular materials, such as pharmaceutical drugs
in the bulk drug, tablet granule material, traditional Chinese medicine; Medium
agent, chemical raw materials in the plastic resin, citric acid and other
powder, granular material drying dehumidification, also used in food and
beverage; Medium agent, grain processing, corn germ, feed drying, as well as
mineral powder, metal powder and other materials. The maximum particle size of
the material can be 6mm. The best is 0.5-3mm.
