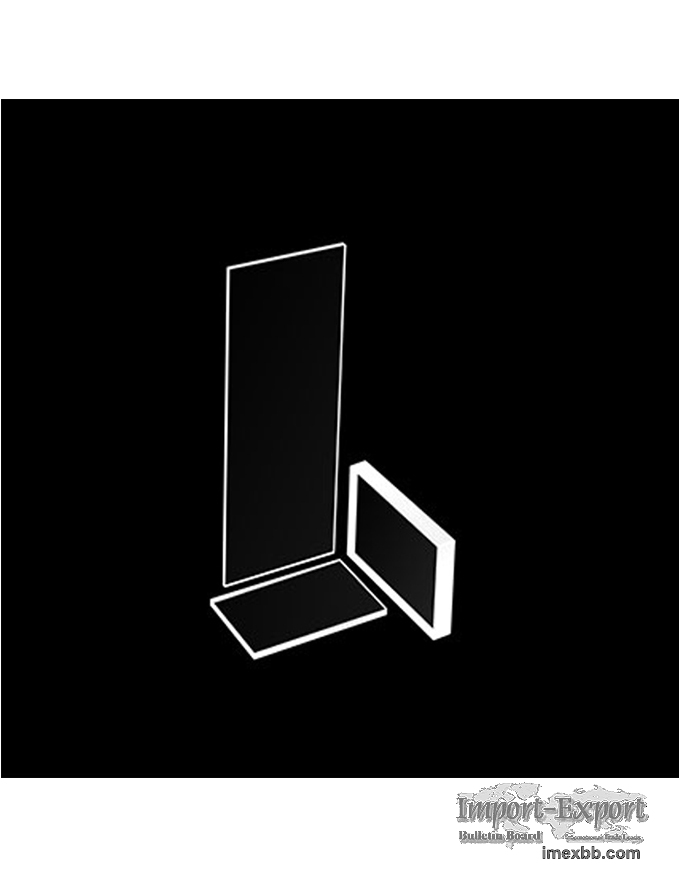

Float Window

While floating through the molten tin, the combination of gravity and surface
tension results in smooth and flat surfaces on both sides.

a) Smooth and flat surface and good vision.

b) Excellent optical performance.

c) Stable chemical properties.

d) Resistant to acid, alkaline, and corrosion.

Specification of Float Window
Material Float Glass
Diameter 1 to 500 mm
Diameter Tolerance +0/-0.02 mm
Thickness Tolerance ±0.01 mm
Surface Quality 10-5
Surface Figure λ/10
Parallelism 1 Minute
Coating Uncoated, AR, HR, Beamsplitter, etc.

TC Optics as one of the most professional optical components suppliers, we
provide cheap optical components, dielectric mirror for sale, float glass
optical windows, windows in optical fiber communication, optical window in
optical fiber communication, calcium fluoride window, caf2 window and etc.
Contact us to know more.

Minimum Order: 500 kilograms
