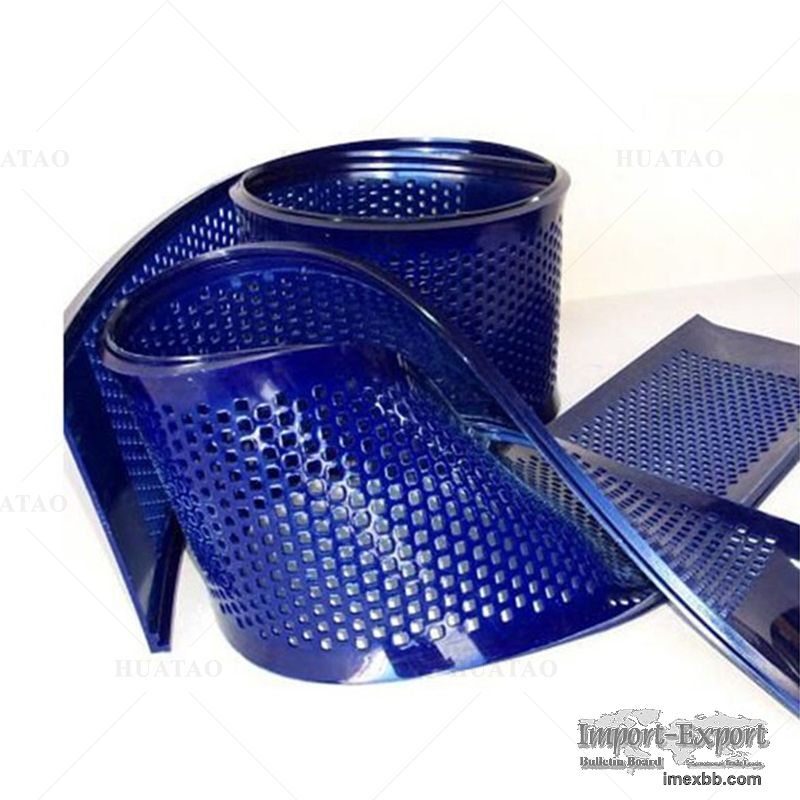

Flip Flop Screen Mat

Polyurethane Flip Flop Screen has been in operation for decades for screening
of moist or humid materials. Made from highly resilient polyurethane elastomer,
these filp flow mats withstand deformation without loss of elasticity or
dimensional accuracy. They are designed both for bolting and clamping systems,
so to fit all screen decks worldwide with no distinction depending on machine
brand, deck dimensions and installation characteristics.
Panel size: Length & Width & Thickness are custom designed
Aperture size: 3~32mm
Aperture shape: Square, Rectangle, Slot, Circular
Working Principle of Flip Flop Screen
Vibrating Flip Flop Screen are increasingly used in material screening and
preparation applications. This is largely due to their high efficiency. In
principle, Flip Flop Screen is a subclass of other high-frequency vibrating
sieves.
The Flip Flop Screen works by combining the double vibration principle with a
flexible polyurethane type screen. Dual vibratory forces act to apply a linear
acceleration to the material passing through the screen. Vibrations are
simultaneously applied to the elastic screen, which stretches and relaxes
quickly. The stretching and relaxation of the screen transfers energy to the
material, causing it to "jump" or "pop". This secondary vibration in turn
enhances the separation of the materials.
Advantages of Flip Flop Screen
Flip flow screener offers a number of benefits over other equipment. Their
compact design is particularly advantageous in both reducing machine footprint
and increasing operational efficiency. Because most models require fewer moving
parts than alternative screening equipment, flip flop screens are much more
modular.
High Screening Efficiency
With polyurethane screen and streamlined design, the flip flop screen is less
prone to mechanical wear and tear. The elastic mesh media used in more than
common materials from glass and scrap to fine-grained minerals and slag. The
flip-flow screens is ideal for wet and sticky materials.
