Flexible Transformer Induction Heating Machine 80KW With 10m Cable

Coaxial hand-held (Flexible transformer) induction heating equipment

Portable heating head with special design, the mini light only 1.5KG(This type
80kw with 10meter flexible transformer design is 5.5KG); Lightweight and
portable, convenient operation, especially suitable for the operation site;
Mainly application for welding cable joint, joint air-conditioning, transformer
lead wire of the motor, but also can be used for ship deck heating stress.



Model GYS-80AC (Three phase)
Work power 340V-430V
Maximum input current 120A
Output power 80KW
Fluctuating frequency 10-50KHZ
Output current 400-3500A
The flow rate of cooling water 0.08-0.16Mpa 9L/Min
Water temperature protection point 50C
Product size main : 725x600x1060mm
Flexible transformer : OD108MM
Net weight main : 123kg
Flexible transformer : 5.5 kg
Flexible cable length 10Meter






Application of Induction Heating Equipment

1, Heating (hot forging, hot fitting and smelting):

1) Hot forging aims to fabricate the work pieces of certain temperature
(different materials require different temperatures) into other shapes through
forging press with the help of punch press, forging machine or other
equipments, for instances, hot extrusion of watch case, watch flan, handle,
mold accessory, kitchen and table ware, art ware, standard part, fastener,
fabricated mechanical part, bronze lock, rivet, steel pin and pin.

2) Hot fitting refers to the connection of different metals or metals with
nonmetals through the heating based on the principle of hot expansion or hot
smelting, for instances, embedded welding of copper core of computer radiator
with aluminum sheet and speaker web, compound of steel and plastic tube,
sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular
electric heating element.

3) Smelting mainly aims to melt the metal into liquid by using the high
temperature, which is mainly applicable to the smelting of iron, steel, copper,
aluminum, zinc as well as various noble metals.



2, Heat Treatment (surface quench):

It is mainly aims to change the rigidity of the metal materials through the
heat treatment to work pieces. Detail applications are stated as follows:

1) Quench for various hardware and tools, such as plier, wrench, hammer, ax,
screwing tools and shear (orchard shear).

2) Quench for various automobile and motorcycle fittings, such as crankshaft,
connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,
semi drive shaft, small shaft and fork.

3) Various electric tools, such as gear and axes.

4) Quench for machine tools, such as lathe deck and guide rail.

5) Quench for various hardware metal parts and machined parts, such as shaft,
gear (chain wheel), cam, chuck and clamp etc.

6) Quench for hardware molds, such as small-size mold, mold accessory and inner
hole of mold.



3, Welding (braze welding, silver soldering and brazing)

It mainly aims to melt the solder by heating it to a certain temperature for
the purpose of connecting two types of metals of the same material or different
materials.

1) Welding of various hardware cutting tools, such as diamond tool, abrasive
tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter,
reamer, planning tool and solid center bit.

2) Welding of various hardware mechanical gadget: Silver soldering and brazing
of metals of the same variety or different varieties, such as hardware toilet
and kitchen products, refrigerating copper fitting, lamp decoration fitting,
precision mold fitting, hardware handle, eggbeater, alloy steel and steel,
steel and copper as well as copper and copper.

3) Compound pot bottom welding is mainly applicable to the braze welding of
circular, square as well as other irregular plain pot bottom. It is also
applicable to plain braze welding of other metals.

4) Welding of heating disc of electric hot-water kettle mainly refers to the
braze welding of stainless steel flat base, aluminum sheet and tubular electric
heating elements of various forms.



4, Annealing (tempering and modulation):

1) Annealing of various stainless steel products, such as stainless steel
basin, annealed and extruded can, annealed folded edge, annealed sink,
stainless steel tube, tableware and cup.

2) Annealing of various other metal work pieces, such as golf ball head, cue,
brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan,
aluminum pail, aluminum radiator and various aluminum products.

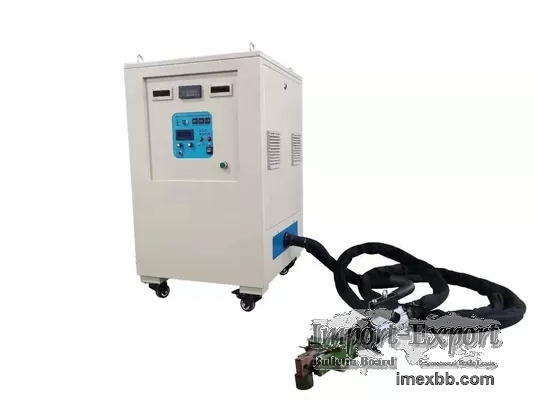

Flexible Transformer Induction Heating Machine 80KW With 10m Cable 0
