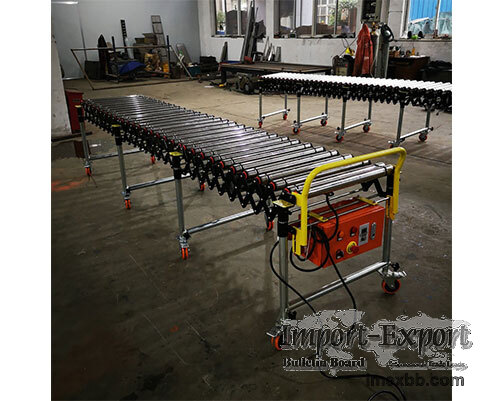

FLEXIBLE ROLLER CONVEYOR

The machine body of our flexible expandable roller conveyor can change the
direction freely, flexibly change the conveying direction and arbitrarily
change the angle. The maximum turning angle can reach 180 degrees. The height
of the support leg can be adjusted. The bottom is equipped with a universal
wheel with a brake, which can be moved conveniently. Our flexible expandable
conveyors can form straight-line sections, S-section, and arc sections as
required.

FLEXIBLE EXPANDABLE ROLLER CONVEYOR PARAMETERS
Name Telescopic Roller Surveyor
Motion Load 30-60 kg/m
Static Load 60 kg/m
Length of Roller 600/800mm
Diameter of Roller 50mm
Roller Shaft Diameter 12mm
Roller Wall Thickness 1.5mm
Heitht of the Working Surface
Power Supply 220Vac/380Vac
Thickness of Expansion Piece ≥3.5mm
Expansion Piece Material Carbon Steel Galvanized

FLEXIBLE ROLLER CONVEYOR BRIEF INTRODUCTION
01
Free expansion and contraction without occupying more space. The storage of our
adjustable height roller conveyor does not occupy too much space, and the
length can be adjusted according to the equipment installation site. The layout
is flexible and easy to use.

02
Flexible turning and 360 degree rotation. This adjustable roller conveyor line
can rotate 360 degrees and turn flexibly. It can be used in various irregular
sites, and the transportation is smooth without deviation.

03
Adjustable height for easy unloading. The height of the working surface can be
adjusted, and the movable conveyor is suitable for indoor and outdoor loading
and unloading.

04
The flexible expandable conveyors can be divided into power drum conveying line
and unpowered drum conveying line according to whether it needs to be driven or
not.

05
You can find this packaging machine for sale applicable to express delivery,
logistics, transportation, wholesale market, workshop, etc.

06
Guonuo can also customize the conveyor roller machine according to the client's
requirements.

As a leading shrink tunnel machine manufacturer in China, We provide l sealer
shrink wrap machine, side sealing machine, flexible roller conveyor design, and
etc. For flexible roller conveyor price or more information, please feel free
to contact us!

Minimum Order: 30 sets
