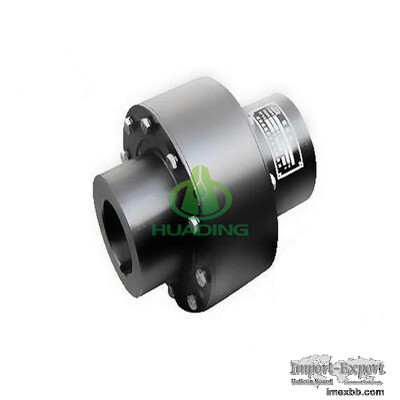

Flexible Pin Couplings HUADING LZ type flexible pin coupling

Flexible Pin Couplings Description
The LZ type flexible pin coupling is made of the outer edge of the two half
couplings and the inner edge of the outer sleeve to make a semicircular groove
with the same radius, and a pin is embedded in the middle pin hole.
When working, the half-coupling of the driving shaft drives the outer sleeve
through the pin, and the outer sleeve drives the driven half-coupling to rotate
through the pin to transmit torque.

Advantage:
1. Low life-cycle costs and long service life;
2. Increase productivity；
3. Professional and innovative solutions；
4. Reduce carbon dioxide emissions;

Flexible Pin Coupling
· Model: LZ Type
· Norminal Torque: 0.112kN. M - 2800kN. M
· Allowed Rotation Sppeed: 5000rpm - 460rpm
· Connection: Shaft hole
· Shaft Hole Diameter(d1,d2,dz): 12mm - 850mm
· Shaft Hole Length (L): 27mm - 880mm

Features:
Transmission torque is ample. At the same torque, most of the rotary diameters
are smaller than the gear couplings, small size and lightweight, it can
partially replace the gear couplings;
Compared with the gear coupling, the structure is simple, has fewer components,
manufacturing is more convenient, and doesn’t need a gear machining machine;
Easy maintenance, longer life, only remove the baffle to replace the nylon pin.
Nylon pins are self-lubricating material, without lubrication, they not only
save oil but also clean the work environment;

Products List:
Transmission Machinery Parts Name Model
universal coupling WS  WSD  WSP
cardan shaft SWC  SWP  SWZ
tooth coupling CL  CLZ  GCLD  GIICL  GICL  NGCL  GGCL PGCLK
disc coupling JMI   JMIJ   JMII    JMIIJ
high flexible coupling LM
chain coupling GL
jaw coupling LT
grid coupling JS

Why choose Huading as your Industrial drive couplings manufacturer ?
Huading combines all these functions in an impressive and innovative coupling
system for industrial machinery construction. In addition to offering a wide
range of standard coupling combinations to choose from, we also often customize
special coupling solutions.

Welcome to contact us for more detailed information about flexible pin
couplings!
