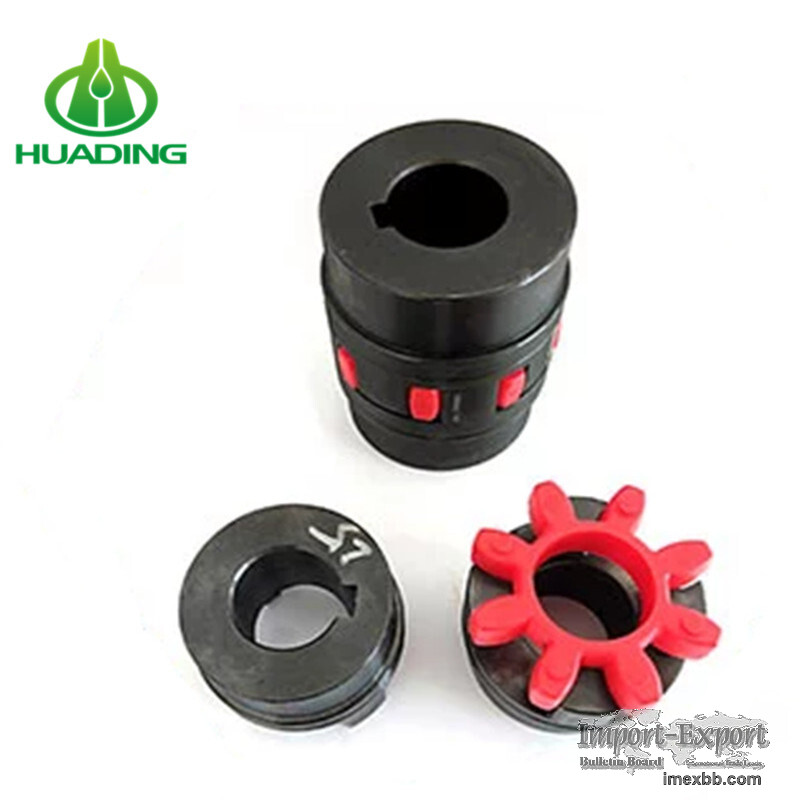

Flexible Jaw Couplings

HUADING LM type flexible jaw couplings typically consist of two hubs and an
elastomer element, also known as a star or bumper. The purpose is to absorb the
shocks of the machine due to irregular operation, thus ensuring torsional
vibration damped power transmission.
Flexible jaw couplings typically consist of two hubs and an elastomer element,
also known as a star or bumper.
Flexible jaw couplings is used in power transmission of industrial equipment
such as metallurgy, mining, lifting, transportation, petroleum, chemical
industry, shipbuilding, textile, light industry, agricultural machinery and
industrial equipment such as pumps, fans, compressors, machine tools,
gearboxes, mixers, printing machines and conveyors.
Advantage:
Run smoothly;
Easy to install;
Compensate displacement (axial, radial, angular);
aw Coupling
· Model: LM Type
· NorminalTorque: 25N. M - 25000N. M
· Connection: Shaft hole
· Shaft Hole Diameter(d1,d2): 12mm - 160mm
· Shaft Hole Length (L): 27mm - mm
Features:
Small inertia torque and light weight;
Long lasting;
Maintenance free;
