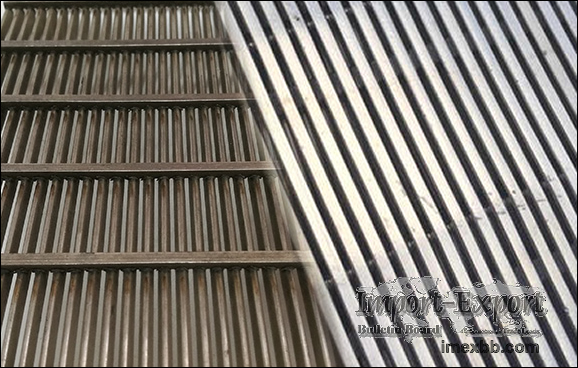

Flat Welded Wedge Wire Panels

Wedgewire panels are supplied in flat forms and curved panel forms. The flat
panel wedge wire screen has high opening, lower entrance velocities and higher
flow rates through the screen.

Structure of Flat Panel Wedge Wire
The mesh panels have continuous slot openings that widen inwardly. The panels
are made by continuously winding a wrap wire onto a frame of support rods,
featuring precision built, consistently high strength, precise slot openings
and product durability.

Flat Wedge Wire Panels are produced in galvanized steel and stainless steel
(304 and 316).
We supply wedge wire panels with standard specifications and similar
specifications allowing flexibility in the design regarding slot width, support
rod spacing, and wire profiles, and tolerances.
