Flat Surface Industrial FKM Rubber Sheet Hardness 60 , 70 , 80+ /

PRODUCT DESCRIPTION
FKM rubber sheet , FKM sheet , FKM rolls , Industrial Rubber Sheet , Tensile
Strength 6-12Mpa

FKM rubber sheet, FKM sheet, FKM rolls for industrial seal etc.

This kind of FKM sheet has flat and bright surface, small thickness tolerance
and good physical properties. It shows excellent resistance to heat, oil and
strong acid or alkaline. Maximum width is 1.5 meter and smallest thickness is
0.5 mm in various hardness. It can be produced by customers' special technical
requirements such as fabric impression, high fluorine content and fiber or
metal net reinforced insertions etc..

Size and Package available:
Size of square or rectangle flat sheet piece: max width 1500mm, thickness range
11-100mm) Roll size: max width 1500mm, thickness range 0.5-10mm, no limit to
length, can be cut to order.
Product Advantage:
Resist to atmospheric oxidation, ozone, high temperature, acid or alkaline,
fuel, water vapor, hot water and chemicals corrosion.

Manufacturing Process:
Square or rectangle flat sheets are moulded by 4000 ton flat vulcanizing press,
rolls are vulcanized by drum-type vulcanizing press.
Color:
Black, Brown, Green and Gray, etc.. Color can be made to order.
Color inquiry of existing FKM product or new color development per Technical
Support.

Brand Explanation:
For example:FPM/FKM1A70-Black FKM:per ASTM D1418, general designation to
fluoroelastomer (per DIN/ISO, the name is FPM) 1A-High quality; 70-Hardness
Shore A

Specifications:
material: virgin fluorubber
quality: industrial grade, FDA grade (postcure)
color: black, grey, brown, red, green etc.
surface: smooth/smooth, smooth/impression fabric, double impression fabric
tensile strength: 7-12Mpa
hardness: 60, 70+/-5Shore A
elongation: 200%
density: 1.9-2.1g/cm3
working temperature: -40°C - +320°C
thickness: 0.5-20.0mm
width: 0.1-2.0m
length: 0.1-20m
Insertion: reinforce to insert 1PLY fabric
***when you enquiry, pls confirm the size and quantity***

made by drum-type vulcanizing press(ROTOCURE) or vulcanizing press with high
quality fluorubber, 1-6mm thickness is made by drum-type vulcanizing
press(ROTOCURE) with shiny surface, 7-20mm thickness is made by vulcanizing
press for get higher thick thickness. With many high characters such as high
heat aging resistance, high temperature resistant, ozone resistant, oil
resistant, vacuum resistant, acid & alkali resistant, chemic cautery resistant.
It could work in air, oil, acid or alkali and all kinds of other chemic
solution which contains 100% cautery material at the temperature of -40°C -
+320°C. Appearance of product this type feels gleaming and flattening.
Allowable variation of thickness is tiny and all physical indexes are
excellent. With outstanding performances of high temperature resistant, oil-
proof, strong acid and alkali proof the product could withstand hard
environment's test. Multi hardness fluorin rubber plate with 2m ultimate
thickness and 0.5mm ultimate thinness could meet the requirement of all
industries. Apply to punch all kinds of seals, gaskets at military,
spaceflight, chemical industry and other high-tech request. Allowed buyers
offer particular technical demand such as insulation, textile insertion, metal
mesh insertion and mat surface, we could make it according to contract
signified.

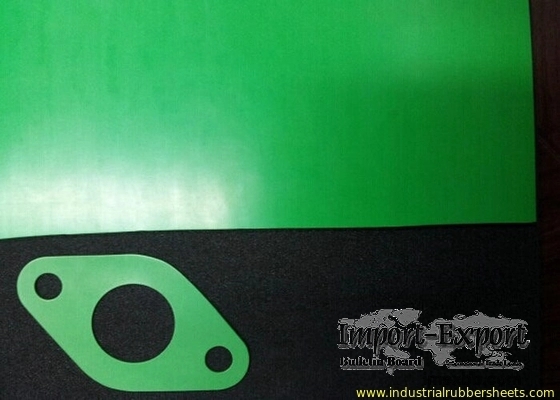

Flat Surface Industrial FKM Rubber Sheet Hardness 60 , 70 , 80+ / - 5 Shore A 0
