Flat Steel Spiral Spring Variable Force Cigarette Shelf Pusher Springs For

PRODUCT DESCRIPTION

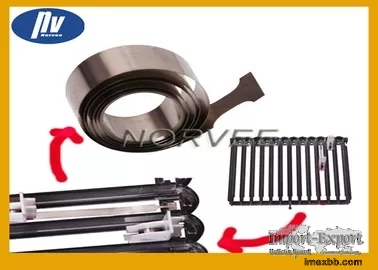

Variable force flat steel spiral cigarette shelf pusher springs for dispenser



Specifications



Place of Origin:

Zhejiang, China (Mainland)

Brand Name:

NV

Model Number:

NO172

Style:

Spiral

Load Type:

Torsion

Material:

Stain , less Steel, Stainless steel or carbon steel

Usage:

dispenser,vending machine etc.

OEM service:

Yes

Samples:

Provide ,

Colours:

Yellow,black,white as your request

Width:

1MM-250MM

Thic , kness:

0.08MM-8MM

Payment term:

TT,L/C,paypal,Western union

length:

Free length as your need

Trade term:

Normal FOB or CIF

Application:

Dispenser,industry, , vending machine etc.

Packaging & Delivery

Packaging Details:

Standard exported cartons,then packing on pallet

Delivery Detail:

10 to 15 days after you pay



Our service:



1. Can design for you

2. Advanced equipments of Springs

3. High quality with competitve price

4. Safe package

5. Fast delivery



Material Stainless steel,carbon steel,62Si2Mn,60Si2Mn,65Mn,SK4,SK5
Load type Constant and variable force
Thickness of material 0.08mm~ 1.8mm
Wire diameter 0.01mm~ 10mm
Width 1mm~ 250mm
Inside diameter As your request
Outside diameter 1 mm and above.
Length of springs Free length as you need
Surface treatment Zinc plated, nickel plated, black coating,also can be done
as customers request
Application Furniture,industrial equipment,electronic devices,etc
Equipments Advanced CNC computer spring machines with high precision and
efficiency
Technology Experienced engineers ,technicians and Skilled Workers
Certification ISO9001:2008
Advantage High quality, competitive prices,automatic production equipment, ,
safe package and fast delivery


Motor spring
Motor spring for circular motion in max 10 and 20 coils, except pre-tension as
specified below. The spring is usually positioned in a housing with the outer hook
located around a pin or in a slot on the housing with the smallest internal
diameter as specified below. It can also be placed in a larger housing, but with an
associated decrease in force.

Power Springs
Power springs are identified by the many coils of strip material stored in a case,
barrel, or band, and connected to a central arbor or shaft. When this shaft is
rotated, the material starts to wind flat against it. This action creates an
increasing torque for as many turns as it can be wound until there is no material
left.

Pre-pressed or conventional power springs


Our capabilities of power springs range from 0.002 inch to 0.125 inch material
thickness and from 0.030 inch to 3 inch material widths. Power springs can be made
using pre-stressed (back wound) or conventional (from flat) methods. Pre-stressed
power springs are spooled to a special free diameter and back wound into a housing
or keeper, while conventional wound springs are manufactured and wound in the flat
state. The advantages of pre-stressed springs are that it allows maximized torque
from a specific material. Conventional wound power springs, however, offer
increased cycle life.





Flat Steel Spiral Spring Variable Force Cigarette Shelf Pusher Springs For
Dispenser 0



Applications for power springs
· seatbelt retractors

· tape measures

· retractable dog leads

· electrical cord retractors

· hose reels

· wind-up toys

· pull start on small gas-powered engines

· tool balancers

· valves



Why Choose us?



1. We can provide reasonable price ,fast shipping,timely delivery ,continue
developing advancing and innovation.



2. The customers can get high quality products , preferential price , and good
service from our company.



3. Our company sincerely welcomes customers from both home and abroad to contact
with us.
