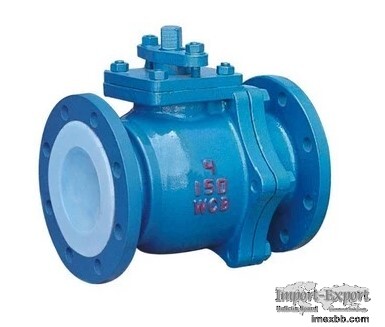

Flange PFA Lined Ball Valve

China PFA Lined Ball Valve: flange end connection, ASME B16.34, ASME B16.10
standard, floating structure, WCB body material, 1/2"-14".
Detail Information
Specification
Design and Manufacture Standard: ASME B16.34
Face-to-face Dimension: ASME B16.10
Flange Standard: ASME B16.5
Inspection and Testing: API 598

Feature
Connection Form: Flange
Body Material: WCB, ASTM A395, CF8, CF8M
Lining Material: PFA, PTFE, PO, FEP
Nominal Diameter: 1/2"-14"(DN15-DN350)
Pressure Range: Class 150, PN10, PN16
Structure: Floating
Operation Method: Manual, Worn gear, Electric, Pneumatic actuated

Minimum Order: 10 pieces

Click to Enlarge
