Filter Nozzle​ for Industrial Water Treatment Work

Water Filter Nozzle-Based Filter Systems Nozzle Products


We can replace any OEM design on the market by supplying a direct
replacement or redesigning the filter nozzle to ensure optimum filter
performance if required.

The filter nozzles used must be properly designed to meet your filter
specifications. With multiple design options, such as material, mounting
style, flow rate capacity, and tailpipes for air scour, YUANLV is sure to
have the filter nozzles that will meet your requirements.

Filter Nozzle for Industrial Water Treatment Exporter China

MORE Selection
Yuanlv manufactures the broadest line of filter nozzles/strainers, with
MILLIONS of combinations of screen slot sizes, thread types, flow
characteristics, and air scour tube construction, along with adapters and
other accessories.



MORE Expertise
Wedge Wire Filters are what we do!

Technical expertise is as close as your telephone. Most mega-companies are
jack-all-trades that cannot afford to focus on a specific technology.
Nozzle-based filtration is and will continue to be our core technology
product.


Get in Touch

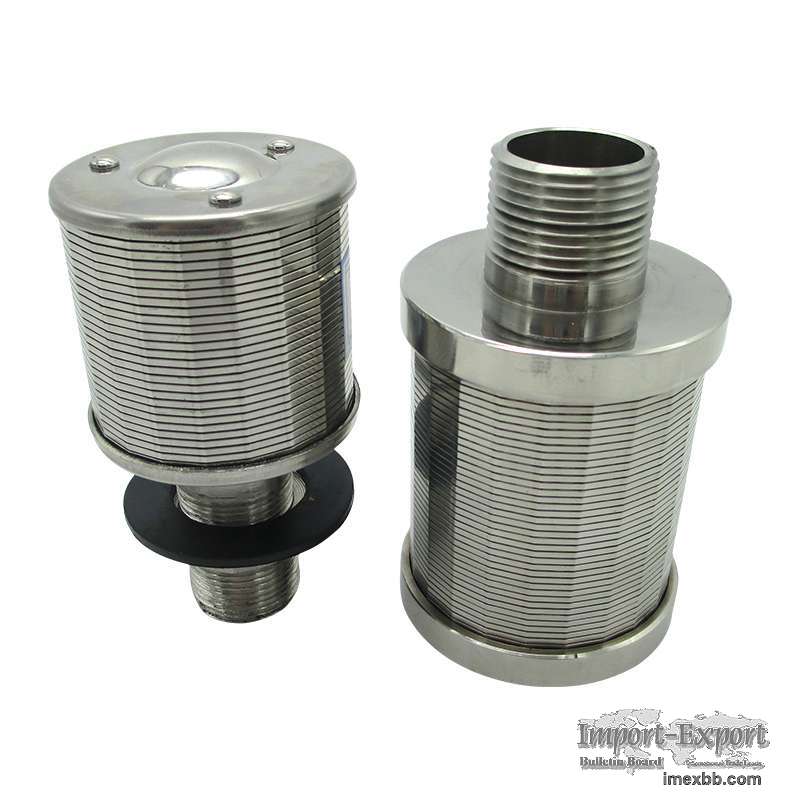

What is a Filter Nozzle?
Filter nozzle--Retains the media and also provides the means for good
distribution of water and air.

The filter nozzle is applied to the components that retain the media and
also provide the means for good distribution of water and air (where
used).It is an element that prevents a filtering or purifying granular media
from leaving the tank or vessel.

A filter nozzle has three main components: a filter with slots to retain
filter media or gravel, a water control hole, and an exhaust manifold with
small holes to control airflow (for long tail nozzle caps with wind
groove).The function of the tailpipe of a filter nozzle is to control the
distribution of air. If air is not used tailpipes are not required.



Classification of filter nozzle types
Filter nozzles are divided into three main types:

Type 1: Short-tail filter nozzle, Installation application for steel floors
or stainless steel floors with high degree of quality.

type 2: Medium-tail filter nozzle, Installation application for concrete
floors with the application of combined air and water filtration.

type 3: Long-tail filter nozzle. Installation application for concrete floor
with combined air and water filter washing, need higher water level lowering
and more evenly distributed wind.

Water Filter Nozzle for Industrial Wasteater Treatment Work

Filter Nozzle Material:
Filter nozzles can be made of many materials such as plastics and metals and
are supplied with auxiliary parts to enable fitting in concrete, metal plate
floors and pipe lateral systems.

But We highly recommend stainless steel wedge wire, and we have always
provided water filter nozzle made of this material.

First of all, wedge wire filter nozzle is no clogging or plugging as in
other conventional screens or filters.

Also the V-shaped wire has an additional, allows for easy cleaning or
backwashing of the filter media.

Click to Enlarge
