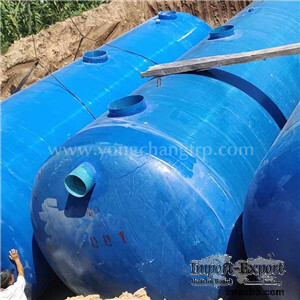

Fiberglass Septic Tank fiberglass storage tank

Fiberglass Septic Tank fiberglass storage tank
distributor/supplier/manufacturer FRP Septic Tank FRP Horizontal Storage Tank


Product Description
Specification: DN3500*8000
Ther , e are two types of glass fiber reinforced plastic septic tanks: mechanical
winding and integral molding, and molded assembly molding.

Features of septic tank:
(1) Saving money: FRP septic tanks adopt factory-based, mechanized, batch-
based, integrated production, new technology, new materials, small size and
large effective volume. Installation is quick and easy. (2) Land saving: FRP
septic tanks save land excavation area.
(3) High efficiency: The glass fiber reinforced plastic septic tank has good
sealing performance, can efficiently treat feces, and the anaerobic decay
effect is more than 2 times better than that of traditional septic tanks.
(4) Environmental protection: FRP septic tanks are produced in a monolithic
shape, with good sealing performance, no leakage, and no pollution to surface
water. The tank adopts high-position siphon to guide dredging, multiple
precipitation and multiple purification.
(5) Durable: The FRP septic tank is made of new material FRP, which is
resistant to aging, acid and alkali, and has a service life of more than 50
years.
(6) High compressive strength and high compressive strength: FRP Septic Tank
International 50 steel resin seal, cylindrical shape, compressive strength
increased several times than polygonal and square.
(7) No post-management and long slag removal cycle: FRP septic tanks are
buried, no power, no maintenance or management in the later period.

Horizontal storage tank specification size table
D 1000 1200 1400 1600 1800
M L N1 N2 L N1 N2 L N1 N2
L N1 N2 L N1 N2
1 1450 2 3
2 2730 3 3 1990 2 3 1560 2 3
3 4010 4 3 2870 2 4 2200 2 4
4 3760 3 4 2850 3 4
2300 2 4
5 3500 3 4
2800 2 4
6
3300 2 4
7
3800 2 4
8
4300 3 4 3470 2 4
10
4780 3 4 3860 2 4
11
5300 3 4 4250 2 4
12
5800 3 4 4640 3 4
15
6280 4 4 5040 3 4
18
6220 3 4
20
7400 3 4

8190 4 4

D 2000 2200 2400 2600 2800 3000
M L N1 N2 L N1 N2 L N1 N2
L N1 N2 L N1 N2
9
10 3540 2 4
11 3850 2 4
12 4170 2 4 3540 2 4
15 5130 3 4 4330 2 4 3750 2 4
18 6080 3 4 5120 2 4 4410 2 4
20 6720 3 4 5650 3 4 4850 2 4
4220 2 4 3740 2 4
25 8310 4 4 6960 3 4 5960 2 4
5160 2 4 4560 2 4 4060 2
30 8280 4 4 7060 3 4
6100 3 4 5370 2 4 4770 2
35 8170 3 4
7050 3 4 6180 2 4 5480 2
40 9270 4 4
7990 3 4 6990 3 4 6200 2
50
9870 3 4 8620 3 4 7600 3
60
10240 3 4 9010 3
70
10430 4
80
11850 4

Note: Horizontal tank: D is diameter, M is cubic, L is length, N1 is the number
of horizontal tank supports, N2 is the number of legs of vertical round bottom
tank. The volume and support can be adjusted according to actual usage.

The Yongchang-branded glass fiber reinforced plastic (FRP) storage tanks are
well designed and manufactured according to customer demand, with various
shapes, sizes and configurations. We can manufacture storage tanks of any
specification and pressure, which can be made into composite containers such as
PVC/FRP, PP/FRP, PVDF/FRP according to the conditions of use. Our designers can
calculate the hoop stress, axial stress, and bending Poisson’s ratio
coefficient of the product according to your available space, chemical storage
requirements and applicable natural conditions, and then give the detailed
manufacturing process parameters, such as product selection, product thickness,
and layering. All of our designed containers meet industry standards, such as
ASTM D3299 for filament-wound storage tanks and ASTM D4097 for contact molded
storage tanks.

Advantages of FRP storage tank:
(1) Light weight and high strength
The density is between 1.5~2.0, only 1/4~1/5 of carbon steel, but the tensile
strength is close to or even higher than that of carbon steel
2) Good corrosion resistance
3) Good electrical performance
It is an excellent insulating material used to make insulators.

Scope of application
Media that can be stored: inorganic acids, organic acids, bases and hydroxides,
elements, gases, and other inorganic compounds, alcohols, aldehydes, ketones,
ethers, esters, hydrocarbons and petroleum products, halogen-containing organic
compounds and other organic compounds, etc. medium.

If you want to know more about FRP series, please click here to visit our
website.
