Fiber Chassis

Features
With standard 2U design, it can be installed on the racks of the cabinet, which
enables unify management and maintenance.

With a modular power supply design, we can replace the damaged power supply
separately due to the redundant power supply without affecting the system.

All stand-alone media converters or media converter PCB can work alone without
affecting each other’s performance.

All stand-alone media converters or media converter PCB are hot-pluggable.

Individual LED indicator for each power module, stand-alone media converter and
media converter PCB.

Introduction:

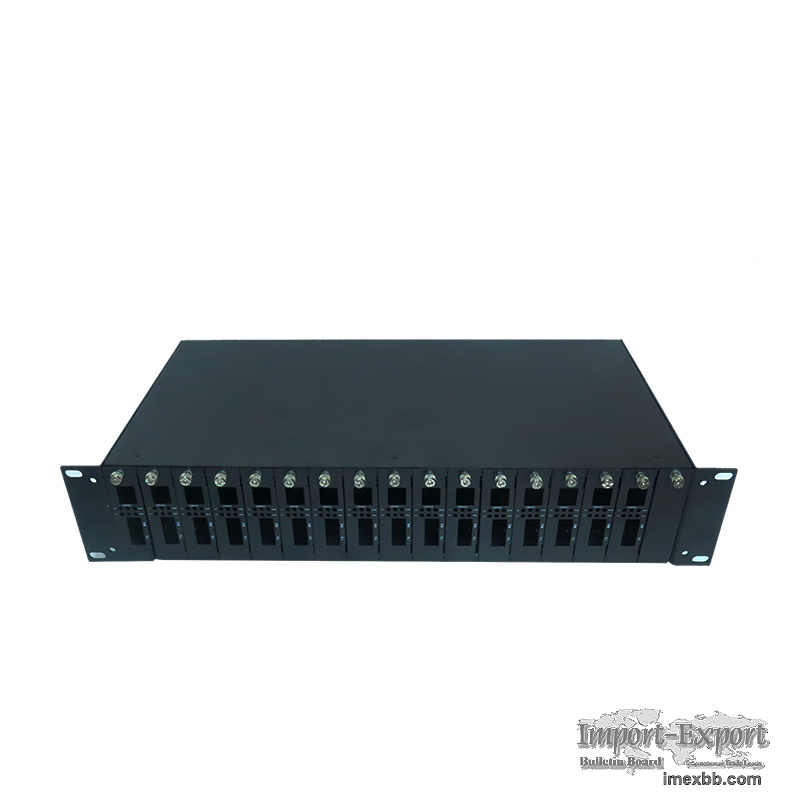

The HS fiber media converter chassis is with standard size of 19 inch. In
order to fulfill the diversified market needs, HS group developed media
converter chassis with multiple designs from color to different slots
combination. The 2 most commonly used types are 14 slots and 16 slots. 14 slot
type is for the stand-alone media converters and 16 slot type is for media
converter PCB cards. Both are designed with dual power supply. We also
developed diversified color designs to help promote your brand among similar
products.

The HS fiber media converter chassis is highly integrated photoelectric
converter center that centralizes up to 16 photoelectric converter cards in a
single rack for unified power supply. It not only reduces the cable, simplifies
the structure, but also facilitates management and maintenance. Rack support
for hot-swap optional single or dual power supply. With dual power supplies, in
order to reduce the load on each power supply, both power supplies will be
supplied at the same time to extend the life of power supplies. In case one of
the power supply fails, the other power supply can be supplied independently so
that the converter will still work normally. When the power supplies need to be
maintananced, there is no need to pull out the fiber optic converter or remove
the rack from the cabinet. We can just simply pull the faulty power supply from
the back of the rack for repair or replacement, which makes the maintenance
extremely convenient and fast.
In this way, it can provide high reliability, high capacity, high integration,
economical. All of those significant features lead to stable operation, solid
power supply capacity, easy operation, easy maintainance and practical fiber
optic network center solution for fiber-optic Ethernet network system.

Specifications:
Product Model Product Description
HS-4F2E-A/B20 10/100BASE-TX to 100BASE-FX SC Fiber Switch SMF,20KM
HS-4F62E-S20 10/100BASE-TX to 100BASE-FX SC Fiber Switch DF,20KM
Ordering Information:
Product Model Product Description
HS-2U-14slot 14slot, 2U 19”, Dual power supply
HS-2U-16slot 16slot, 2U 19”, Dual power supply

Shenzhen Huashi Network Technology Co. Ltd. was established in June 2011, which
is an original manufacturer of networking and fiber products. We provide fiber
optic media converter chassis, fiber converter chassis, poe extension, Ethernet
Switch, POE Switch, Ethernet Extender and etc. Want to know more? Please
contact us.

Minimum Order: 500 pieces
