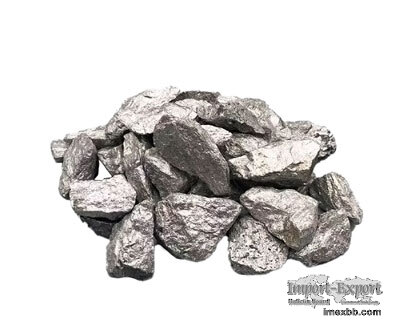

Ferro Niobium

Ferroniobium an iron alloy with niobium and iron as its principal components.
It also contains impurities such as aluminum, silicon, carbon, sulfur and
phosphorus. According to the content of niobium alloy is divided into FeNb50,
FeNb60, FeNb70. The iron alloy produced from niobium tantalum contains tantalum
and is called niobium tantalum iron. Iron niobium and niobium-nickel alloys are
used as niobium additives for iron and nickel alloys in vacuum smelting.
Require low gas content, low harmful impurities, such As Pb, Sb, Bi, Sn, As,
etc. 2×10-6, so the title "VQ"(vacuum mass), such as VQFeNb, VQNiNb and so on.
The niobium-ferromanganese alloy produced in China (NB10% ~ 15%) is used as
alloying agent for low alloy steel and niobium treatment agent for carbon
steel. If you want to buy bulk ferro alloys and get the latest price, please
feel free to contact us!

Specification of Ferro Niobium
Chemical Composition% Brand
FeNb70 FeNb60-A FeNb60-B FeNb50-A FeNb50-B
Nb+Ta
70-80 60-70 60-70 50-60 50-60
Ta 0.8 0.5 0.8 0.8 1.5
Al 3.8 2 2 2 2
Si 1.5 0.4 1 1.2 4
C 0.04 0.04 0.05 0.05 0.05
S 0.03 0.02 0.03 0.03 0.03
P 0.04 0.02 0.05 0.05 0.05
W 0.3 0.2 0.3 0.3 -
Ti 0.3 0.2 0.3 0.3 -
Cu 0.3 0.3 0.3 0.3 -
Mn 0.3 0.3 0.3 0.3 -
As 0.005 0.005 0.005 0.005 -
Sn 0.002 0.002 0.002 0.002 -
Sb 0.002 0.002 0.002 0.002 -
Pb 0.002 0.002 0.002 0.002 -
Bi 0.002 0.002 0.002 0.002 -


Application of Ferro Niobium
Ferroniobium is mainly used for smelting high temperature (heat resistant)
alloys, stainless steel and high strength low alloy steel. In stainless steel
and heat-resistant steel, niobium carbonates stably with carbon in the steel.
It IS DISTRIBUTED UNIFORMLY ON THE GRAIN boundary OF STEEL, prevents the grain
growth of steel at high temperature, plays a role in refining the structure of
steel, and can improve the strength, toughness and creep properties of steel.
The chemical affinity of niobium and carbon is much greater than that of
chromium and carbon. Therefore, when there is niobium in stainless steel,
chromium carbide can be prevented from precipitate at the grain boundary of
steel, thus improving the corrosion resistance of steel. The niobium and
nitrogen in the steel form stable niobium nitride, which improves the corrosion
resistance of the steel surface. Niobium in steel and oxygen to form stable
niobium oxide, so that the surface of the steel to form niobium oxide film, can
prevent oxygen to the interior diffusion and play the role of oxidation. Adding
NB0.015% ~ 0.05% to carbon steel can refine the structure and make the steel
have good formability and welding performance. Niobium strongly prevents the
austenite recrystallization of steel, so that steel rolling can be effectively
controlled at higher temperature, and the effect of strengthening and
toughening is very remarkable. So niobium as a microalloying element in carbon
steel dosage greatly increased.

Production Process of Ferro Niobium
Ferroniobium has been produced by traditional thermite process since 1965. In
the early 1990s, the process of producing niobium iron by semi - continuous
self - heating reduction was established. The reactor for thermite smelting is
fixed and equipped with a furnace cover. The slag and niobium iron produced by
the reaction are discharged from the furnace. The prepared raw materials will
be loaded into the designated cylindrical bin with the material tank.

Features of Ferro Niobium
01.
Niobium plays the role of solution strengthening and carbide precipitation
strengthening in superalloy, which can improve the yield strength and surface
stability of superalloy.

02.
The weight of niobium is one of the lighter refractory metals, which is also
one of the factors in the large use of superalloys.

03.
The coercivity properties of permanent magnet alloy can be improved by adding
niobium.

The addition of niobium in cast iron is helpful for spheroidization and
formation of pearlite structure. It plays a role in breeding and refining the
casting structure.

04.
Niobium can improve the strength, toughness, hardness and service life of
castings at high temperature.

If you want to know more about ferro niobium price, please contact us.
