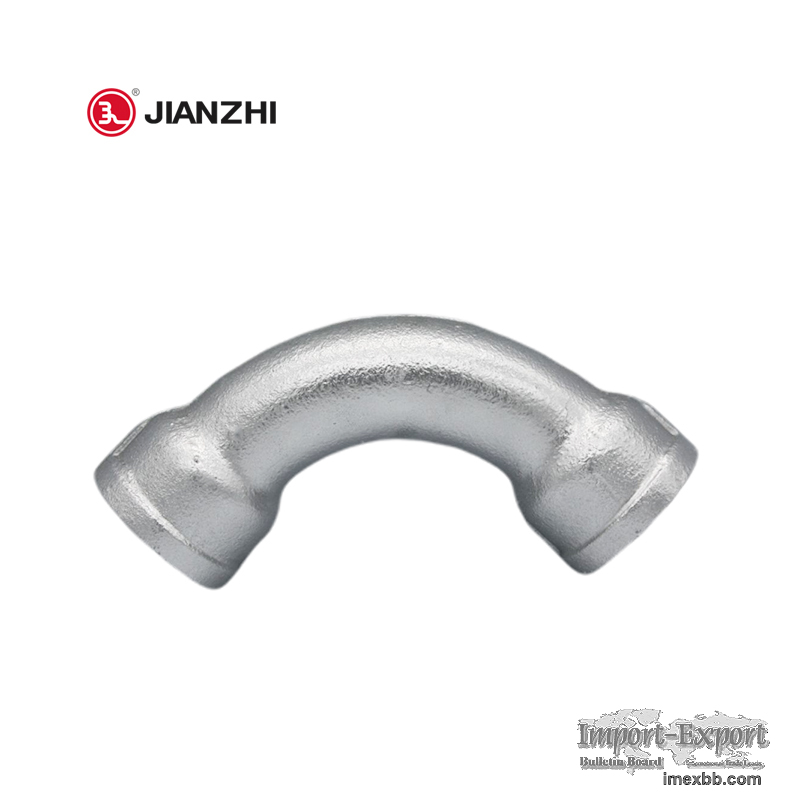

Female Bend 90 Degree Fig.2

Female Bend 90 Degree Fig.2
Size: 1/8''-6''(DN6-DN15 , 0)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 /
BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554
/ BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar UL Listed /FM
Approved /CE /ABNT /TSE /SNI /ISI
Product Dimensions
Bend refers to the pipe fittings that change the direction of the pipeline in
the pipeline system. Elbow by angle, there are 45 °, 90 °, 180 ° three most
commonly used, this product is 90 degrees of the female bend, mainly used in
plumbing system installation. Bend female in addition to corrosion resistance,
but also has excellent mechanical resistance to compression, traction and
bending stress.

We are a professional manufacturer of malleable iron parts, if you have
questions, please contact us.
Technical Data
Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
Female Bend 90 Degree Fig.2
