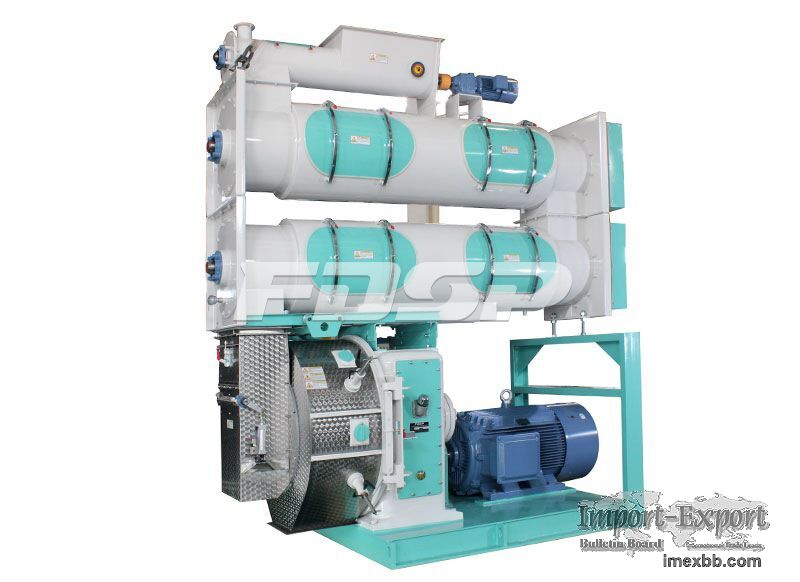

FDSP SZLH768a2 High Grade Ring Die Pellet Mill

FDSP SZLH768a2 High Grade Ring Die Pellet Mill
Feed making machine is mainly used for large sized feed mills producing kinds
of granule feed which can reduce the cost. It is suitable for chicken, duck,
goose, pig, cattle, sheep, fish, shrimp, crab breeding and etc.
This FDSP pellet mill is more suitable for granule feed production of large-
sized feed mills.
Poultry feed pellet machine Feature Description:
1. This machine is with small occupy, low power consumption, low noisy and
adjustable feeding.  It also featured with compact structure, beautiful
appearance and  stable performance
2. The main transmission casing is made by casting with large bearing, good
stability, long service life.
3. Gear directly-connecting driving is adopted for high efficiency; the
capacity could be 15% higher than belt pellet mill, High precision aircraft
grade gear grinding process is adopted for ensure the stable and low noisy gear
driving.
4. The feeding system of Feed Pellet Mill is controlled by stepless variable
frequency motor, and easy to adjust the speed.
5. Be equipped with safety pin which will broke if main motor overloaded to
protection.
6. Be equipped with two cutter which can control the length of granule
effectively
7. Full stainless steel feeder, conditioner and door cover will avoid the
corrosion to pollute the raw material, with long service life
8. This Poultry feed pellet machine has high output, low noise, low power
consumption, long service life, easy to use and other features
9. Humanized design, careful for safety operation and use: the door cover is
equipped with travel switch, the main motor will automatically power off to
achieve active protection when the door cover opened, , in addition, the
transmission parts are with closed shell.
10. the ring die are assembled with clamp type which is easy to change and
reliable in driving
11. Automatic oil cooling system
12. single stainless steel conditioner can be optional to meet the requirement
for normal poultry feed production.
13. double stainless steel conditioner can be optional to meet the requirement
for high grade poultry feed production.
Brand name: FDSP
14, double jacket conditioner can be optional to meet the requirement for
normal aqua feed production.
15, double jacket conditioner and retentioner can be optional to meet the
requirement for middle grade  aqua feed production.
16, double jacket conditioner, retentioner and DDC can be optional to meet the
requirement for high grade aqua feed production.
cattle feed machine Parameters
Capacity: T/H 18-28（¢3.5   1：10 for normal broiler feed formula）
Main power  KW 220/250/280
Power of screw feeder KW 2.2（variable frequency）
Power of conditioner KW 11
Rotation speed of screw feeder rpm 12-120
Conditioner shaft rotation speed rpm 152
Ring die inner diameter  mm 762
Ring die working width  mm 210
Ring die linear velocity m/s 7.9

Minimum Order: 1 sets
