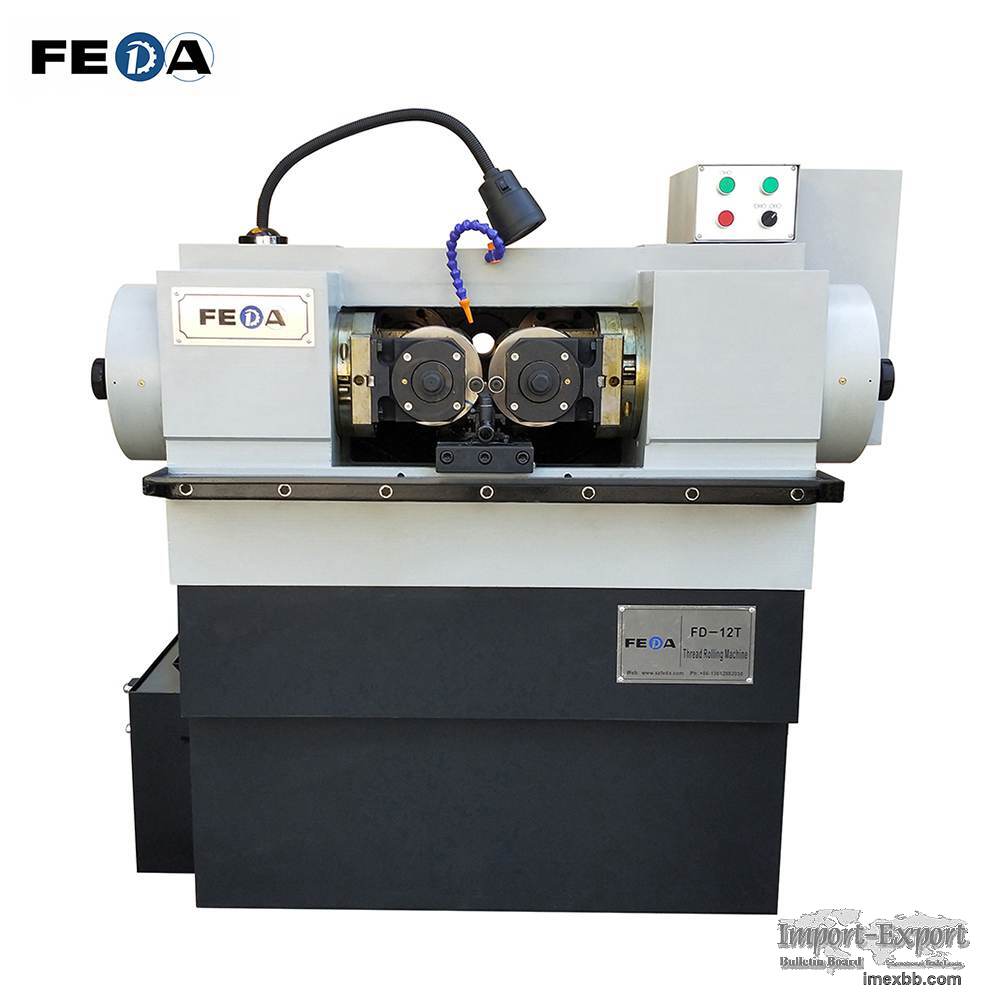

FD-12T bolt thread rolling machine high precision thread making machine

1. Automatic feeding with adjustable brackets
2. Speed is adjustable for different products
3. 54mm hole diameter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 120KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008

Specification
Working diameter 2-20/mm
Thread pitch 0.4-2.5P
Thread length In feed & Thru feed
Spindle speed 42/53/68/87rpm
Outside diameter of rolling die 120mm-175mm
Inside diameter of rolling die(keyway) 54mm
Thickness of rolling die 80mm
Min.center distance between die spindles 120mm
Max.center distance between die spindles 196mm
Machine motor / Hydraulic motor 4.2KW
Max.rolling pressure 12T
Supply voltage 380V 3P 50Hz
Weight(reference) 1500(KG)
Package Dimension(L*W*H) 1325*1300*1400 mm
Dimension(L*W*H) 1176*1160*1200 mm

Q1. Are you factory or trading company ?
A1. We are factory of manufacturing thread rolling machine and dies by
ourselves.
      Welcome to visit our factory, if possible.

Q2. What is the delivery time ?
A2. Usually 15-25 working days for machine, and 10-15 working days for dies.

Q3. What is the warranty time for machine?
A3. Usually 12 months from B/L date.

Q4. What is the payment term?
A4. T/T, Western Union, Money Gram, Alipay, PayPal.
      50% as deposit, and 50% before shipping.

Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes, Engineer can design special auto feeding device according to your
products.
      But please provide the drawing of your products before that.

Q6. How will you solve problems that we face during using your machine?
A6. A. Please provide necessary videos and pictures that can show the problems,
our engineers will check        and give corresponding solutions.
      B. Will arrange engineers to solve problems at the scene, if
possible.

WhatsApp&Phone:  +86-13312913043
QQ: 3833890347   Wechat: szfeda06

Minimum Order: 1 sets
