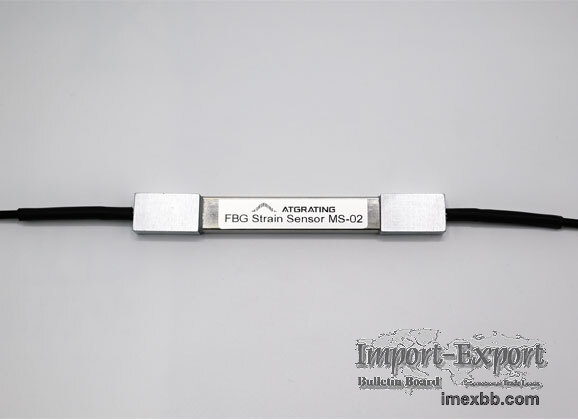

FBG Strain Sensor MS-02

Surface mounted optical strain gauge MS-02 is mainly used to monitor the stress
and deformation of various structural surfaces. The sensor is packaged with
high-performance stainless steel material, and is installed on the surface of
the monitored object by gluing or spot welding without causing any damage to
the surface of the measured object. Due to its small size and convenient
installation, it is more suitable for small spaces and laboratories, and
occasions where the object to be measured is not easily damaged.

Features Of optical fibre strain gauge MS-02
l High precision, reliability, and stability

l Minimal temperature drift

l All-optical measurement, intrinsically safe

l Long-term zero point stability

l Easy to install

Application Of FBG Strain Sensor MS-02
Surface strain measurement of steel structure

Bridge structural health monitoring

Surface strain measurement of polymer materials

Pre-stressed load measurement

Strain measurement of pipes and storage tanks

Specification Of FBG Strain Sensor MS-02

Parameter Unit Value
Center Wavelength nm 1460 ~ 1610
Range με ±1500
Resolution με 0.01% F.S.
Accuracy με 0.1% F.S.
Material -- Stainless steel
Dimension mm 82(L) x 13(W) x 7(H)
Installation -- Paste or welding
Pigtail Length m Φ3mm armored cable, 1m at both ends, or customize
Optical Connector -- FC/APC, or customize
Operating Temperature °C -20 ~ +80

The sensor accuracy does not contain error sources originating from the read-
out equipment.

AtGrating is a professional supplier for optical fiber sensing. AtGrating
offers fiber optic displacement sensor, fiber bragg grating pressure sensor,
fiber optic sensing solutions, etc. For more information, please feel free to
contact us!
