FBG Strain Sensor MS-01/MST-01

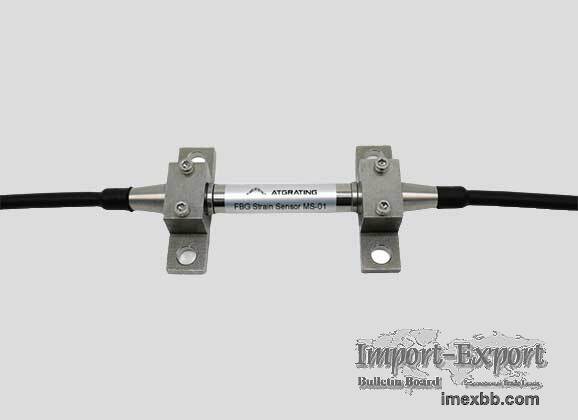

Surface mounted FBG strain sensor MS-01/MST-01 can meet the strain measurement
needs of various occasions, and can be installed in different monitoring
positions such as concrete surfaces or steel surfaces. Mainly used to measure
the strain of steel structures and concrete surfaces. The external strain
transmits the strain to the internal fiber grating through the sensor mounting
base, and the high-precision fiber grating converts the sensed tiny strain into
a sensitive optical wavelength, which is analyzed by an FBG interrogator.

Features Of FBG Strain Sensor MS-01/MST-01
High precision, resolution, and stability

Buit-in Temperature Compensation (MST-01)

Anti-electromagnetic interference

Long-term zero point stability

Easy to set up distributed sensor network

Easy to install and reusable

Application Of FBG Strain Sensor MS-01/MST-01
lSuitable for strain monitoring of bridges, gas pipelines, etc

lLarge steel structures such as transmission line towers, cranes, hoists

lStrain monitoring of rail surface

lSteel structure & concrete surface strain measurement

Specification Of FBG Strain Sensor MS-01/MST-01
Parameter Unit Value
MS-01 MST-01
Center Wavelength nm 1460 ~ 1610
Range με ±1500
Resolution με 0.01% F.S.
Accuracy με 0.1% F.S.
Temperature Compensation -- No Yes
Material -- Stainless steel
Dimension mm Φ12 x 126
Installation -- Welding
Pigtail Length m Φ3mm armored cable, 1m at both ends, or customize
Optical Connector -- FC/APC, or customize
Operating Temperature °C -20 ~ +80

The sensor accuracy does not contain error sources originating from the read-
out equipment.

AtGrating is a professional supplier for optical fiber sensing. AtGrating
offers fiber optic temperature sensor, fiber bragg grating pressure sensor,
fiber optic sensing, fbg strain gauge, fiber optic strain gauge, etc. For more
information, please feel free to contact us!
