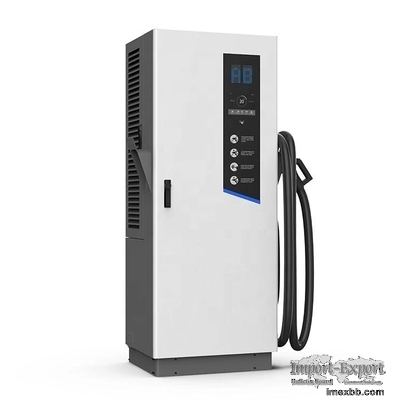

Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw

Product Description

3 phase EV Chargers 160kw Electric Vehicle Fast Charging Pile CCS type 2/type 1
Charging Station160KW

DC EV charger is used in public operations such as highway stops,gas stations,
and airports.

Private operations,such as electric car dealers,electric car fleets,etc.

Compatible
vehicles:BMW,Volkswagen,GM,Porsche,Audi,Nissan , ,Mitsubishi,Peugeot,Citrtoen,Kia,
Renault,Daiml , er,Tesla,Smart,Mercedes

DC EVcharger product features:

1. Support GBT,CCS, and CHAdeMO CHARGING output at the same time(optional)

2. Reliable and powerful modular hardware.

3. The installation is simple,fast and easy.

4. Daylight-readable touchscreen display.

5. Support open communication protocol OCPP.

6. RFID authorization

7. Low operating noise

Power Suppply
3P+N+PE
Rated Voltage
400VAC±15%(50/60Hz)
THDi
≤5%
Efficiency
≥95%
Power Factor
≥0.98
Connector Type
CCS Combo 2
Output Voltage
150-1000V
Maximum Output Current
250A
Output Power Rating
120kW(Max)/180kW(Max)
Output Voltage Accuracy
≤0.5%
Output Current Accuracy
≤±5%
HMI
7-Inch touch screen
Charging Method
RFID Card
Cable Length
Cellular modem:GSM/4G (optional)
LAN:10/100 Base-T Ethernet
Communication Protocol
OCPP 1.6J
Operating Noise Level
≤60dBA
Ingress Protection(IP/IK rating)
IP54/IK08
Power Meter
Accuracy Class 1 energy meter
Enclosure
Galvanized steel
Product Dimension
700 x 550 x 1800mm(W x D x H)
Package Dimension
950 x 720 x 1950mm(W x D x H)
Protection
Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge
Protection,Over Temperature,Ground Protection
Certification Standard
EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3
Operating Temperature
-35℃ to +50℃
Storage Temperature
–40°C to +75°C
Maximum Installation Height
≤2000m
Operating Humidity
5%–95% RH
Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw CCS
0

Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw CCS
1

Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw CCS
2

Ingress Protection IP54,IK10

You can use the item outdoor and do not have to worry even in rainy days. The
shell is made of ABS, Light

but robust, so it will note be easily damaged. You can add a lock at the bottom
of the station to prevent lost.

Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw CCS
3

Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw CCS
4

Fast 3 Phase Home Ev Charger Station Type 2 Type 1 Car Charging Pile 160kw CCS
5

what is the working voltage of the DC evcharger?
The DC ev charger power inlet is a three-phase five-wire system:L1,L2,L3,N,PE

what certification does DC EVcharger get?
DC EV charger has obtained CE,TUV,SGS,ISO,&China National Laboratory Test
Certification.

Can the DC EV Charger function be customized?
Yes, contact our engineers to develop and upgrade the software or hardware of
the DC EV Charger to meet your needs.
