Family Mould

As one of the most professional Chinese molding companies, we offer various
plastic molding with high-quality, such as industrial mould and so on.

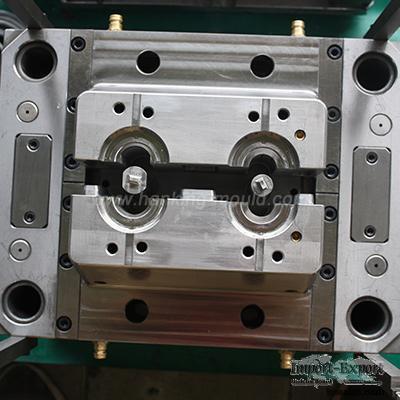

Family Mold Injection Molding
Mould Name：1+1 Family MouldPart Material：PA6 GF30Product Size： Product
Description: Scharnier right & Left Mould Cavity: 1 +1 CavityMould Size:
350*440*498MMSuitable Injection Machine:Mould Cavity Steel: 8...

Family Mold Tool
Mould Name：1+1 Family Mould Part Material：PA6 GF30Product Size： Product
Description: Scharnier right & Left Mould Cavity: 1 +1 CavityMould Size:
350*440*498MMSuitable Injection Machine:Mould Cavity Steel: 8...

Family Mold
Mould Name：1+1 Family MouldPart Material：PA6 GF30Product Size： Product
Description: Scharnier right & Left Mould Cavity: 1 +1 CavityMould Size:
350*440*498MMSuitable Injection Machine:Mould Cavity Steel: 8...
What is the family mold?

A mold that can only produce one product at a time is called a single-cavity
injection mold. If a mould is used to produce two or more plastic parts at a
time, multi-cavity injection, if the parts are different, such a mold is called
family mold.

The plastic parts produced by the single cavity mold have high precision, easy
control of process parameters, simple mold structure, low mold manufacturing
cost and short cycle time. However, the productivity of plastic molding is low,
and the cost of plastic parts is high, which is suitable for large plastic
parts, high precision requirements or small batches and trial production.

The plastic parts produced by the multi-cavity mold or family mold have low
precision, it is difficult to control the process parameters, the mold
structure is relatively complicated, the mold cost is high, and the cycle time
is longer. However, productivity is higher, the cost of plastic parts is lower,
and it is suitable for large quantities and long-term production of small-sized
plastic parts.

The number of cavities is often determined by factors such as budget, clamping
force, plastic part structure, and injection volume.

When designing a multi-cavity mold, one method is to determine the model of the
injection molding machine, and then calculate the number of cavities according
to the technical parameters of the injection molding machine and the technical
requirements of the plastic parts; the other method is based on the
requirements for production efficiency and the structure of the part require
the number of cavities to be determined, and then choose the proper injection
molding machine or check the existing injection molding machine.

We normally make the multi-cavity mold with 2 cavities, 4 cavities, 8 cavities,
16 cavities, 32 cavities, 48 cavities, etc. For family mold, we normally make
at 1+1 cavities, 2+2 cavities, 4+4 cavities, 8+8 cavities, we can find the
numbers are always double. Family mold help to molding different plastic parts
in the same mould, this solution saves tooling and molding cost. For most
family mold, the plastic part is in same material & similar size, HanKing Mould
will help customers to analyze the possibility to make the best economic
plastic injection mould.
