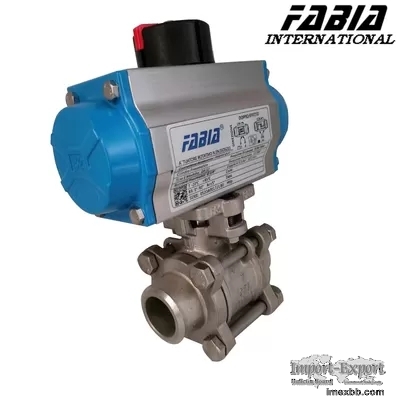

FABIA Pneumatic 3 Piece Butt Welding Ball Valve With Thrust Bearing

FABIA Pneumatic 3 Piece Butt Welding Ball Valve With Thrust Bearing



1. Description:



Ball valve is mainly used to cut off or connect the medium in the pipeline,
and can also be used for fluid regulation and control.



2.Specification:



FABIA Valve Parameter List
Valve type: Pneumatic 3 Piece Butt Welding Ball Valve With Thrust
Bearing
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M
(316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12M , o2Ti
Connection type: Welded connection/flange connection/thread
connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:



Fluid resistance is small, ball valve is one of the least fluid resistance
of all valves, even if it is a reduced diameter ball valve, its fluid
resistance is quite small.
Thrust bearing reduces the friction torque of the valve stem, which can make
the valve stem operate smoothly and flexibly for a long time.
Sealing performance of the seat is good, the sealing ring made of
polytetrafluoroethylene and other elastic materials, the structure is easy
to seal, and the sealing capacity of the ball valve increases with the
increase of the medium pressure.
Valve stem seal is reliable, because the valve stem is only as if rotating
without lifting movement, the packing seal of the valve stem is not easy to
destroy, and the sealing capacity increases with the pressure of the medium.
Because polytetrafluoroethylene and other materials have good self-
lubrication, and the friction loss with the ball is small, so the service
life of the ball valve is long.
Lower mounted valve stem and valve stem head convex step to prevent the
valve stem ejecta, such as fire caused by the valve stem seal damage, the
convex step and the valve body can also form metal contact to ensure the
valve stem seal.
Anti-static function: set the spring between the ball, valve stem and valve
body, which can export the static electricity generated by the switching
process.




FABIA Pneumatic 3 Piece Butt Welding Ball Valve With Thrust Bearing 0
