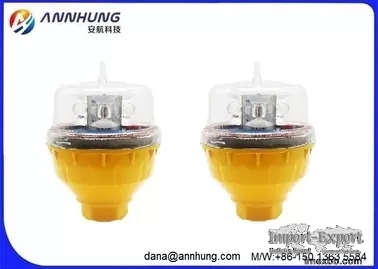

FAA L-810 Aluminum 32.5cd Led Aviation Obstruction Light

Product Description

LED Aviation Obstruction Light red fixed light aircraft warning light 32.5cd FAA L-
810 tower warning light


This Low-intensity aircraft warning light is a steady burning aviation obstruction
light designed for marking top of obstacle that do not exceed 45 meters in height.



Compliance

l ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6-1, table 6-2 Low Intensity
Type A / B / E Obstruction Light

l FAA L-810



Features

Electrical

l 3 high power CREE LED, make sure LED keep bright while use

l Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input
48VDC/110VAC/240VAC

l LED power supply board includes short circuit and open circuit protection, Line
surge protection by metal oxide varistor

Physical

l Bird deterrent spike on top

l Unique designed PMMA lens for converging light and good transparency

l High translucency and anti-UV polycarbonate cover could use 3-5years without
yellowing

l UV protection Powder coated bright yellow color base make better visibility and
also long life in harsh environments

l Base material is die casting aluminum which has strong corrosion resistance,
Shock and Vibrations protection

l 3/4inch thread hole make pole installation easy

l No screw fix type - just twist, the cover will be fixed tightly

System design

l Built-in photocell for day/night operation(dusk to dawn operation, automatically
turn on when background luminance is below 50cd/m2

l Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB

l Surge and lightning protection

Optional

l Alarm contact(NO COM NC)for remote monitoring

l Infrared LED for pilot using NVG



Application

l AH-LI-B2 low-intensity avaition obstrution light could be used alone on the top
of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave &
TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.

l When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-
intensity or high-intensity obstruction light to indicate hazardous obstructions
with a steady red safety light.





SPECIFICATIONS AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light
Light Characteristics
Light Source 3 high power CREE LED
Emitting Color Red
Intensity(cd) ＞32.5cd, others are optional
Horizontal Output(degrees) 360
Vertical beam spread(degrees) ≥10
Flash Characteristics Steady-burning/20/30/60 adjustable
Operation Mode Dusk-to-dawn Automatically as standard.
24hours operation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage 48VDC and AC110-240VAC, 12VDC, etc
Power(W) 2.5
Circuit Protection Integrated
Surge/Lightning Protection
IEC61000-4-5 L- L 2kV 4kV



IEC61000-4-5 L-G 4kV



Physical Characteristics
Body/Cover Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4 inch pipe thread
Dimension(mm) 90×90×130
Weight(kg) 0.3
Product Life Expectancy 5 years Plus
Environmental Factors
Ambient Temperature(℃)

-55℃~+70℃

-55~7 , 0
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP66
Flammability class UL94-V0
Certificate
ICAO(Issue by Intertek)
ISO 9001-2015
Options Available
NVG(Night Vision Goggles) compatible LED
Dry contact alarm(NO COM NC)
