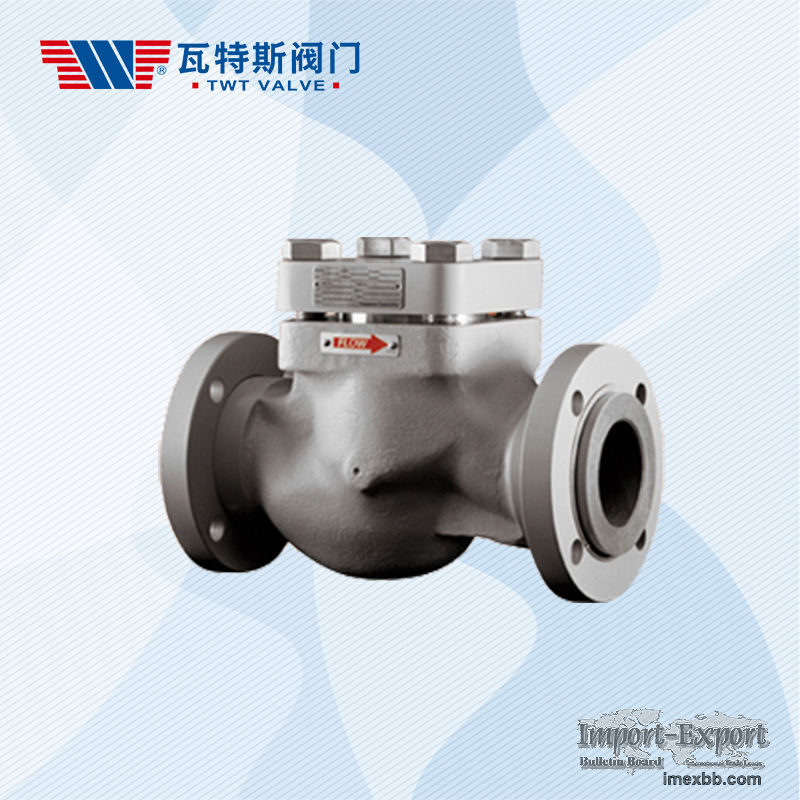

F650 Series Cast Steel Check Valve

F650 Series Cast Steel Check Valve

Size Range DN15～DN600
Temperature Range -25～450℃
Body Materials Carbon steel
Bonnet material Carbon steel
Disc material Carbon steel
Stem material Stainless steel
- Hard surface material seat, API internals

Double Flange Check Valve Features and advantages

Rugged construction ensures safety in the appropriate pressure temperature
range. dual disc check valve Can provide flange and butt two connections.

The bonnet does not require removal of the valve from the line, allowing access
to the maintenance hinge and disc.

The valve flap is closed by its own weight to prevent the backflow of the fluid
to form a sufficiently large flow rate to avoid damaging impact.

Through the balance valve and the "wing" structure, the head loss (or head
loss) is reduced to the minimum extent.

Shorter stroke, combined with the advantages of the balance valve, the valve
closed more quickly, to minimize the impact of the phenomenon.

Because of the small gap on the pivot pin, a funnel tight seat seal can be
achieved throughout the pressure range to ensure the integrity of the valve
seat seal between the disc ring and the valve body.

Minimum Order: 1 pieces
