F436 Washer/Flat Steel Washer, 1/4" - 4", Zinc Plated/Dacromet

PRODUCT DESCRIPTION
Standard:F436

Description:

F436 washers are commonly used in automobile manufacturing due to
their strength and durability. These washers are specifically designed to
meet ASTM specifications for mechanical, chemical, and dimensional
requirements. They are hardened or carburized for extra strength and are
smaller in size compared to standard F844 washers.

Zinc plating is a popular choice for F436 washers used in automobile
manufacturing. Zinc plating provides corrosion resistance, which is crucial
for automotive applications where exposure to moisture, chemicals, and other
harsh conditions is common. The zinc plating helps protect the washers from
rust and corrosion, ensuring their longevity and performance in automotive
assemblies.

F436 washers with zinc plating are often used in structural work in
conjunction with A325 and A490 bolts. These washers provide the necessary
hardness and strength required for automotive applications, ensuring
reliable and long-lasting performance.





Material 45#/40CR
Size 1/4"-4"
Finish Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized
Hardness HV300/HRC35-45
Marking can be Customized
Application Constrution/Wind turbines/railway line
Packing Carton+ pallet; we can pack washers as your requirements
Terms FOB+shanghai/ningbo
Delivery time 30-70days



size Inner diameter(min) Inner diameter(max)
Outside diameter (min)

Outside diameter (max)

Thickness

(max)

nominal size

Thickness

(min)

1/4" , ;

7.137

7.925 15.087 15.875 2 1.65 1.2954
5/16" 8.737 9.525 16.662 17.45 2 1.65 1.2954
3/8" 10.312
11.1

19.837 20.65 2 1.65 1.2954
7/16"
11.912

12.7 22.63 23.41 2 1.65 1.2954
1/2" 13.487 14.3 26.187 27.787 4.95 3.47 2.4638
9/16" 15.087 15.9 29.311 30.91 4.95 3.47 2.4638
5/8" 17.45 18.26 32.537 34.137 4.95 3.8 3.0988
3/4" 20.65 21.43 37 38.1 4.95 3.8 3.0988
7/8" 23.8 24.587 43.662 45.237 4.95 3.97 3.4544
1" 28.575 29.36 50.012 51.587 4.95 3.97 3.4544
1-1/8" 31.75 32.537 56.362 57.937 4.95 3.97 3.4544
1-1/4" 34.925 35.712 62.712 64.287 4.95 3.97 3.4544
1-3/8" 38.10 39.7 68.25 70.63 4.95 3.97 3.4544
1-1/2" 41.275 42.062 75.412 76.987 4.95 3.97 3.4544
1-5/8" 44.45 46.01 80.99 84.11 7.1 6 4.53
1-3/4" 47.63 49.23 84.12 87.29 7.1 6 4.53
1-7/8" 50.80 52.36 87.34 90.46 7.1 6 4.53
2" 53.98 55.58 93.65 96.81 7.1 6 4.53
2-1/4" 60.33 61.93 100 103.16 8.62 7.3 6.1
2-1/2" 66.68 68.28 112.7 115.86 8.62 7.3 6.1
2-3/4" 73.03 74.63 125.4 128.56 8.62 7.3 6.1
3" 79.38 80.98 138.1 142.82 8.62 7.3 6.1
3-1/4" 85.73 88.9 149.23 155.52 8.62 7.3 6.1
3-1/2" 92.08 95.25 161.93 168.22 8.62 7.3 6.1
3-3/4" 98.43 101.6 174.63 180.92 8.62 7.3 6.1
4" 104.78 107.95 187.33 193.62 8.62 7.3 6.1

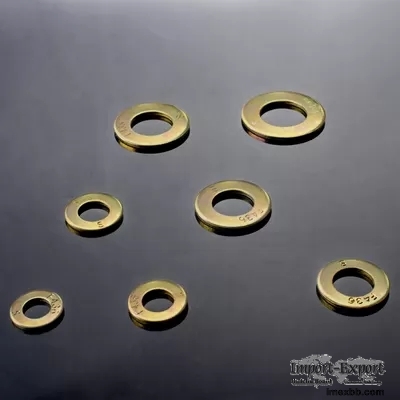

Products pictures for Flat washers
