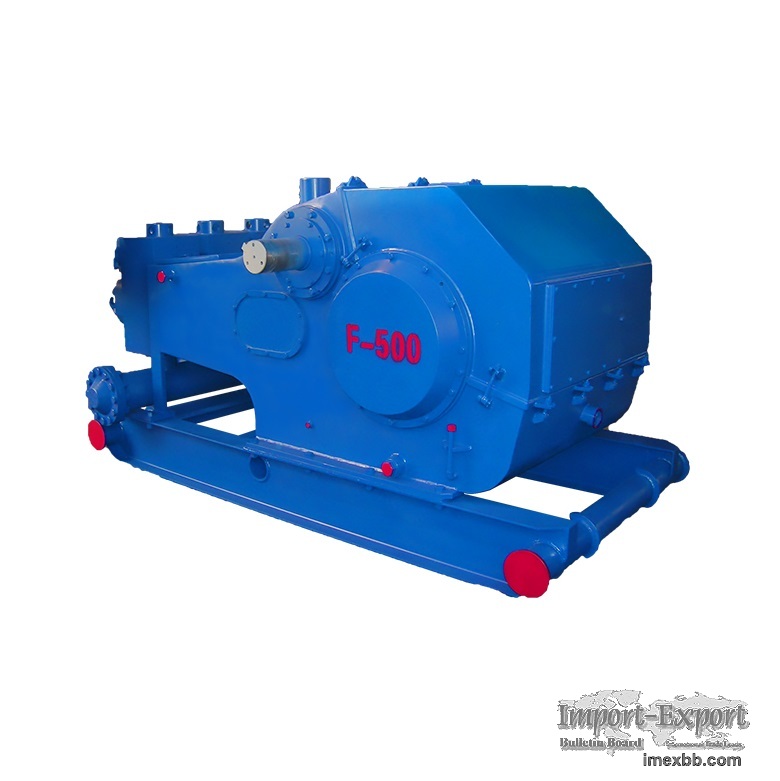

F-500 Triplex Mud Pumps (API-7K)

F-500 Triplex Mud Pumps (API-7K)
Product Description
Rated Horsepower: 500 HP
Rated Pump Speed: 165 SPM
Maximum Liner Size by Stroke Length: 6-3/4" x 7-1/2"
Suction Connection: 8"
Discharge Connection: 4" 5,000 psi Flange
Gear Ratio: 4.286:1
Valve Pot: API #5
Approximate Weight: 21,539 lbs
Specifications of Triplex Mud Pumps
Liner Size, inches 6-3/4 6-1/2 6 5-1/2 5 4
Rated Pressure, psi 1,342 1,447 1,699 2,020 2,442 3,820
Pump Speed
SPM Input Power
HP Displacement, GPM
165 500 575 533 454 382 316 202
150 455 523 485 413 347 287 184
140 424 488 452 386 324 268 171
130 394 453 420 358 301 249 159
120 364 418 388 330 278 229 147
 110 334 383 356 303 255 210 135
