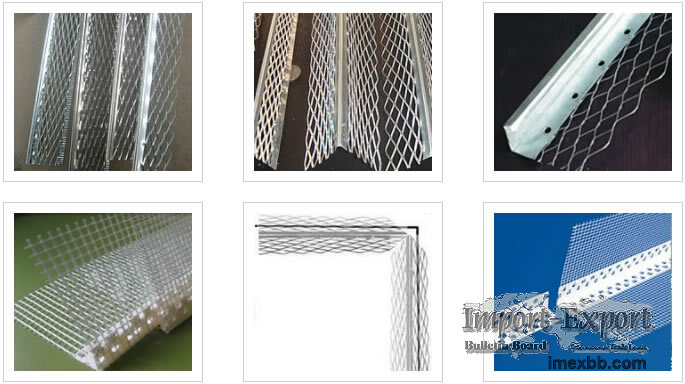

Exterior Raked Render Angle Beads

This kind of corner bead is also called angle bead, provides a finish and
protects external raked render angles. Stainless steel and hard PVC are most
popular materials for external joint construction applications. Using of corner
beads enables adjustment of all thickness renders in construction. Can be made
with P.V.C nosing or Fiberglass Mesh Wings. Raked Render Angle Corner Beads
have three standard models for render thicknesses of 8, 10 and 15 mm. Using of
corner beads for exterior render allows adjustment of render thickness to 6 mm.

Technical Description:
Sheet Types : Expanded metal or perforated metal.
Dimensions:
Angle beads have 42 mm wings. Length of angle bead can be 225, 250, 300 cm.
Material: PVC, stainless steel, aluminium,etc
Color: White in common,other colors are available for PVC, and nature color for
metal corner bead.
Thickness: 1mm-3mm for PVC corner bead and 0.4mm-1mm for metal corner bead.
Width: 20mm*20mm-50mm-50mm
Length: 2.4m-3m
Packaging: In carton

Stainless Steel Angle Beads for Exterior Render with Adjustment of Render
Thickness to 6mm
This angle bead finishes and protects inside brick. Then the wall angles can be
plastered.

Technical Description:
Materials: Stainless steel sheets.

Features: Sharp angle. Expanded metal wings have slots so that the render grips
the inside wall perfectly.

Dimensions:
25 x 25 mm. Length: 2, 2.5 linear meter

Plastic PVC Corner Bead with Fiberglass Mesh Wings for Exterior Rendering:
Width: 20mm*20mm-50mm-50mm
Length: 2.4m-3m
Packaging: In carton
Application: Construction and decoration
