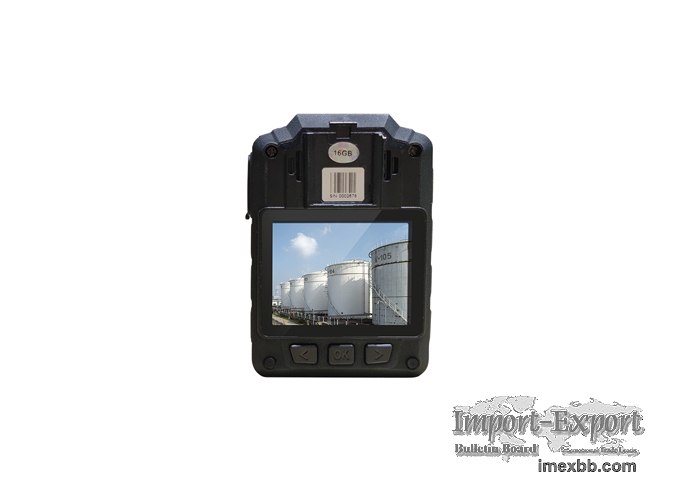

Explosion-proof Law Enforcement Recorder

Explosion-proof law enforcement recorder, mode YHJ3.7, integrates digital
video, digital camera, and recording functions in one, and can digitally record
dynamic and static on-site conditions during the work process. It is suitable
for coal mines, non-coal mines, chemical plants, and pharmaceutical plants. ,
natural gas pipeline inspection, oil depot tank farm, gas station, terminal
tanker and other environments.

Parameters of explosion proof inspection camera

Explosion-proof Type
Coal mine: Mine intrinsically safe
Chemical: Intrinsically Safe
Explosion-proof Mark Coal mine: Ex ib I Mb Chemical: Ex ib IIC T4 Gb
Protection Class IP68
Appearance Size 80×55×30.85mm
Weight 160g
Operating Voltage 3.6V-4.2VDC
Maximum Operating Current ≤500mA
Battery Capacity 2150mAh
Boot-Time 2s
Digital Zoom The lens can be adjusted far and near and supports digital zoom
Compatible Systems Windows(98/2000/ME/XP/7/8/10)
Display Size 2-inch LCD Full HD display
Overlay Watermark Support
Video Recording One-key video recording (in the power-off   state, directly
press the "recording" button to enter the video recording)
Video Snapshot Support
Video Format MOV/MP4/AVI
Video Shooting Support 1296P HD shooting. And there are 6 resolutions of
2304*1296, 2560*1080, 1920*1080, 1440*1080, 1280*720,   848*480. When the
video resolution is 2304*1296, 2560*1080, 1440*1080, 720*480, and 848*480, the
video frame rate is 30 frames per second; when the video resolution is
1920*1080, the video frame rate is 30 Frames per second, 45 frames per second
are optional; when the video resolution is 1280*720 and 848*480, the video
frame rate is 30 frames per second, 45 frames per second or 60 frames per
second.
Video Playback It has 2x, 4x, 8x, 16x, 32x, 64x, and 128x fast-forward or
fast-rewind playback functions, when Explosion-proof Law   Enforcement
Recorder is playing back video locally.
Pre-recording/Delayed recording Support. Under the resolution of 2560*1080, it
can pre-record the video information for 45 minutes before and after the
recording.
Maximum Logging Interval The machine adopts automatic segment recording
mode, and there is no interval between the recording time of two adjacent
videos.
Segmented Video This machine can set 5min, 15min, 20min, 30min, and other
segmented videos
Photo Format JPEG
Photo Pixels Maximum support 50 million pixels. And the effective pixel is
9472*5328,8000*4768,8000*4500,7808*4392,7360*4 , 140,7552*4248,7104*3996,6720*3780
,6400*3600,61 , 44*3456,6016*3384,5344*3006,4608*2592,4224*2376,37 , 76*2124,2688*151
2   are optional.
Lens Wide Angle 170°
Anti-shake Function Electronic image stabilization
Shutter Control electronic shutter
Exposure method Automatic
Audio Format WAV
One-click Recording Support separate recording, dual-microphone anti-noise
Infrared Night Vision In the dark environment, you can see the face clearly
at 10 meters, and see the outline of the human body at 20 meters.
Infrared Switching Manual / Auto
Key Tone Off Function Can be set to turn off the key tone
Vibration Reminder to Turn Off Function Can be set to turn off the vibration
reminder
Indicator Light Off Function The recorder can be set to turn off the
indicator light
Storage Capacity 16GB, expandable up to 128GB.
One-click Playback The recorder can play back the latest
video/recording/picture file with one key in standby mode
File Tag The video that is being shot can be marked with the
corresponding key, and the marked files will not be automatically cleared when
uploaded to the background collection station.
Password Protection Software password protection, anti-tampering, anti-
deletion
Log Function Documents are attached with time, product number, user number,
and other information
Voice Broadcast When the recorder is turned on, it can broadcast the user
number and the hourly time signal
Laser Positioning Positioning and shooting to keep the picture from
shifting
Motion   Detection After the motion detection recording function is turned
on, in the viewfinder preview mode, when a moving object enters the shooting
range of the recorder, the recorder automatically enters the recording mode.
White Fill Light Function The white fill light can be manually turned on
to supplement the light, and it can shoot normally in low-light environments
Parameter Settings The recorder can set the recording resolution, the
number of photo pixels, etc.
Auto Save Function When Power Off The recorder can automatically save the
recording file before the power is exhausted, and then shut down
External Camera Function An external small camera can be connected to
provide a video source for this machine, and the horizontal field of view of
the small camera is ≥140°
Power Saving Mode You can set the machine's automatic screen off and
automatic shutdown time.
Charging Function The machine can be charged through the special adapter,
computer USB cable interface, car charger, and other charging interfaces, and
the machine can be equipped with a car charger.

Features of Explosion-proof Law Enforcement Recorder

01
One Button Recording
Under the shutdown state, directly press the "video" button to enter the video
recording.

02
170° Lens Wide Angle
Support 1296P HD shooting.

03
Support Infrared Night Vision Function
Dark environment shooting more clearly.

04
IP68 Protection Grade
Suitable for coal mine and chemical harsh environment.

Xuxin provides explosion proof products, explosion proof intercom system, etc.
Want to know what is the difference between explosion proof and intrinsically
safe or more please contact us.

Minimum Order: 1 sets

Click to Enlarge
